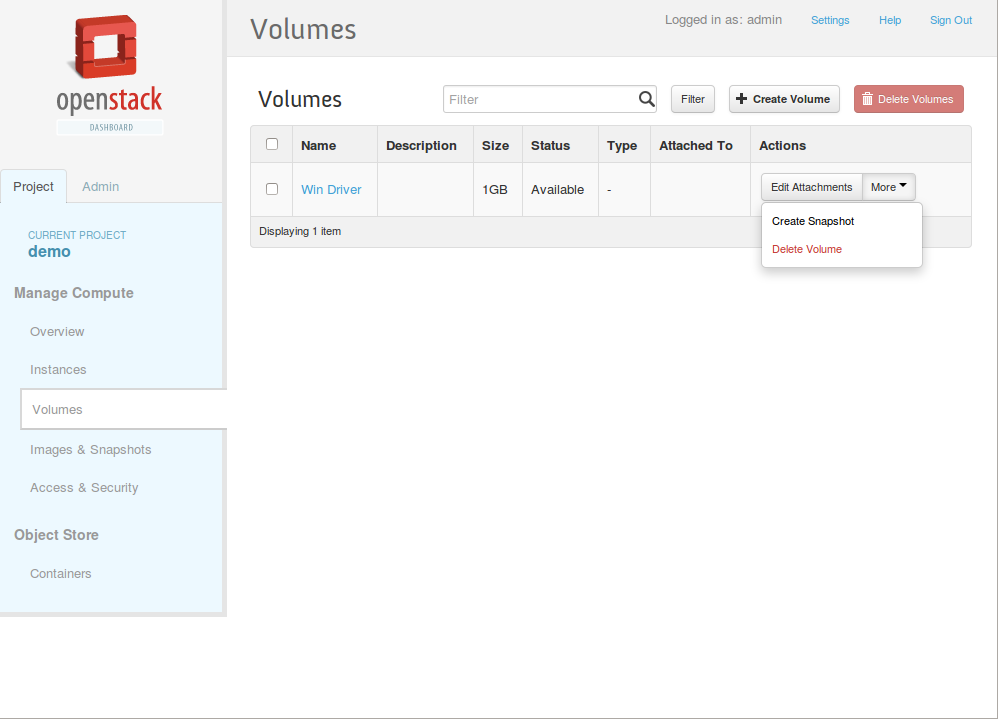

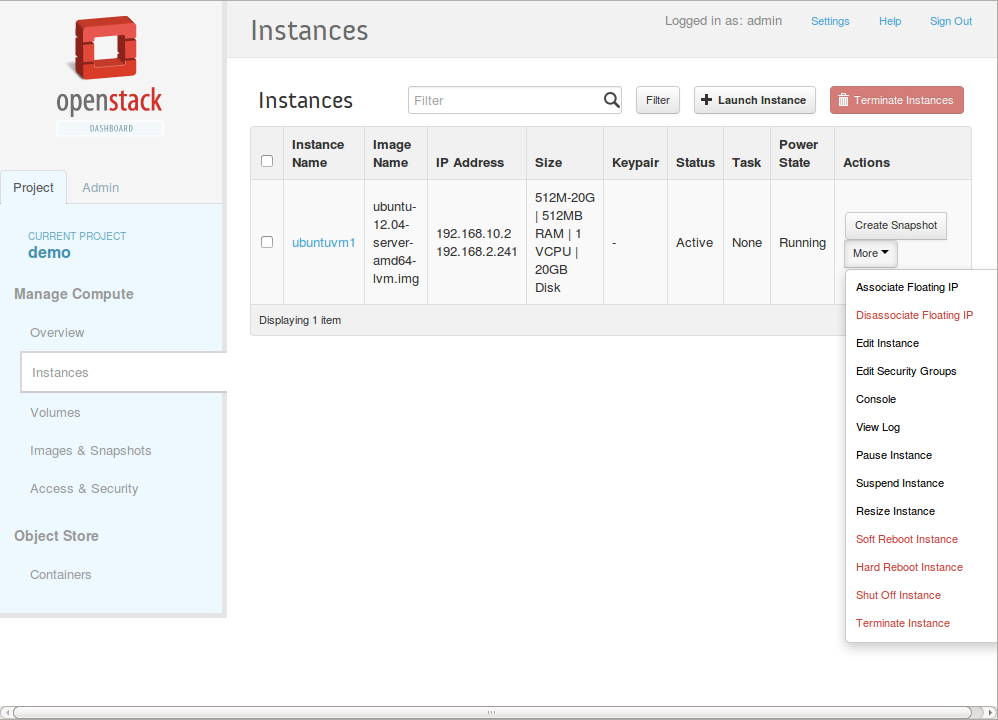

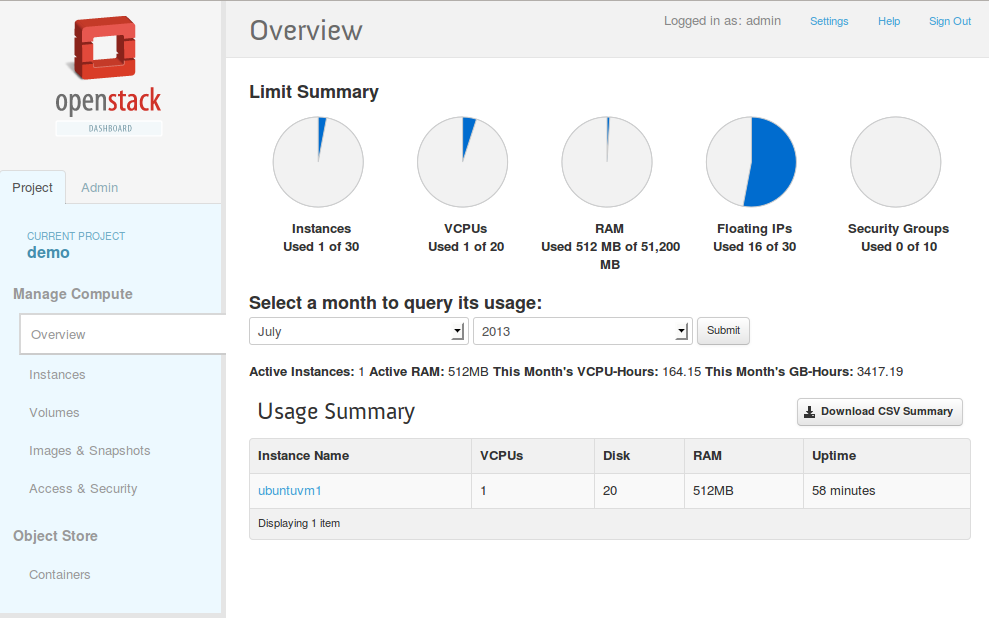

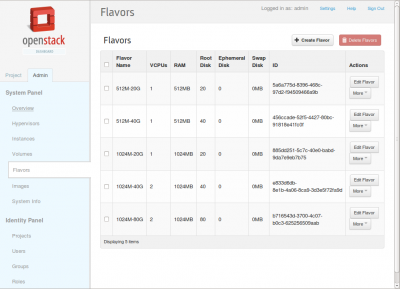

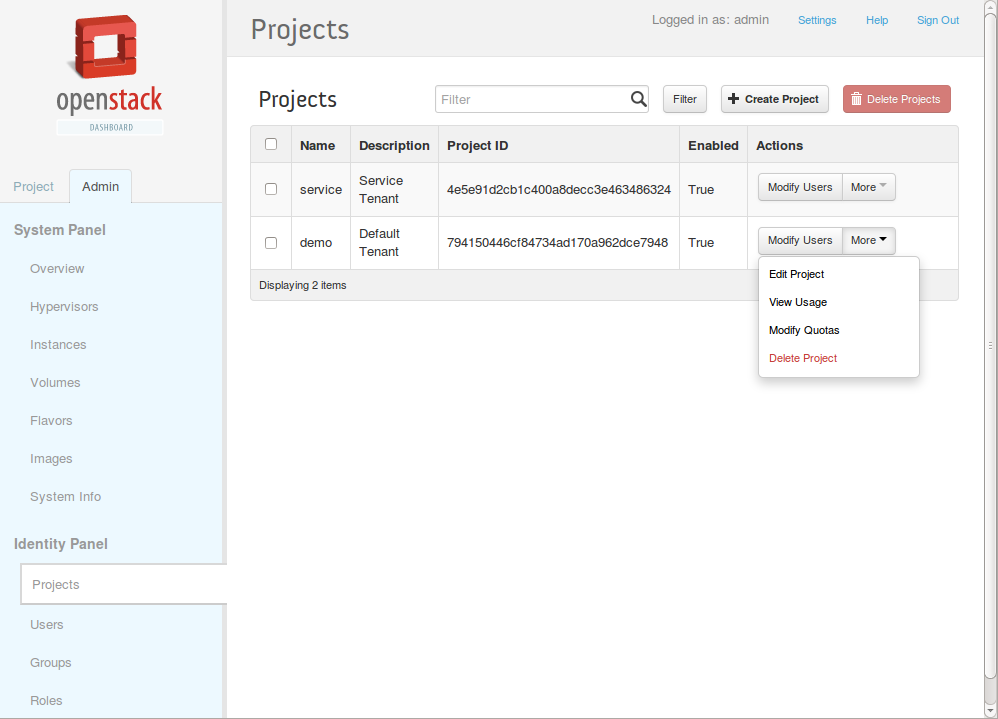

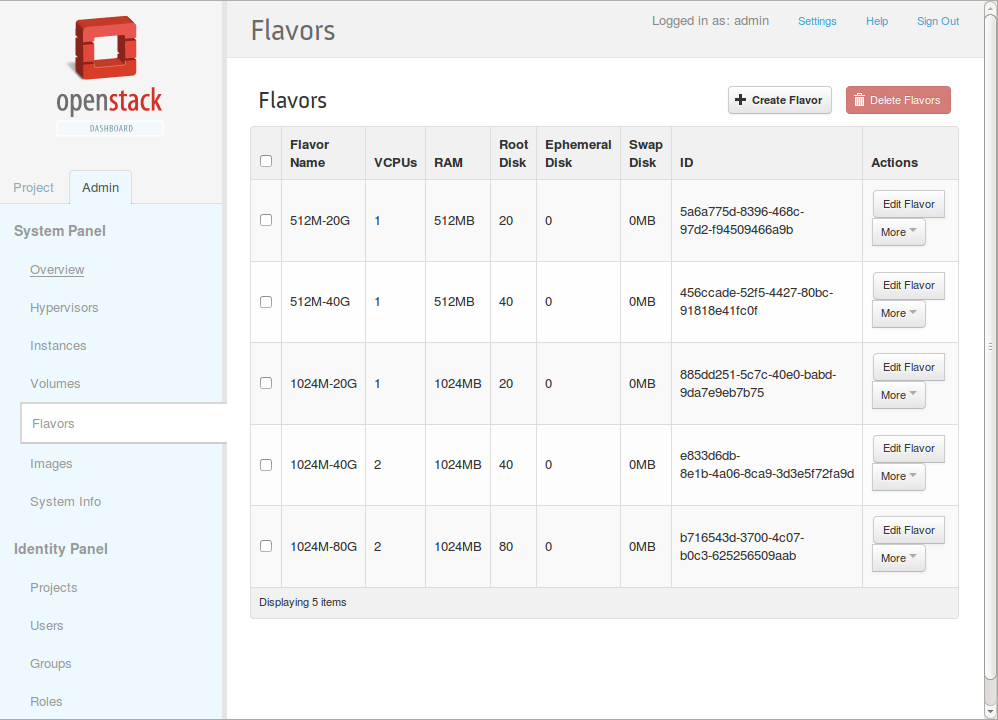

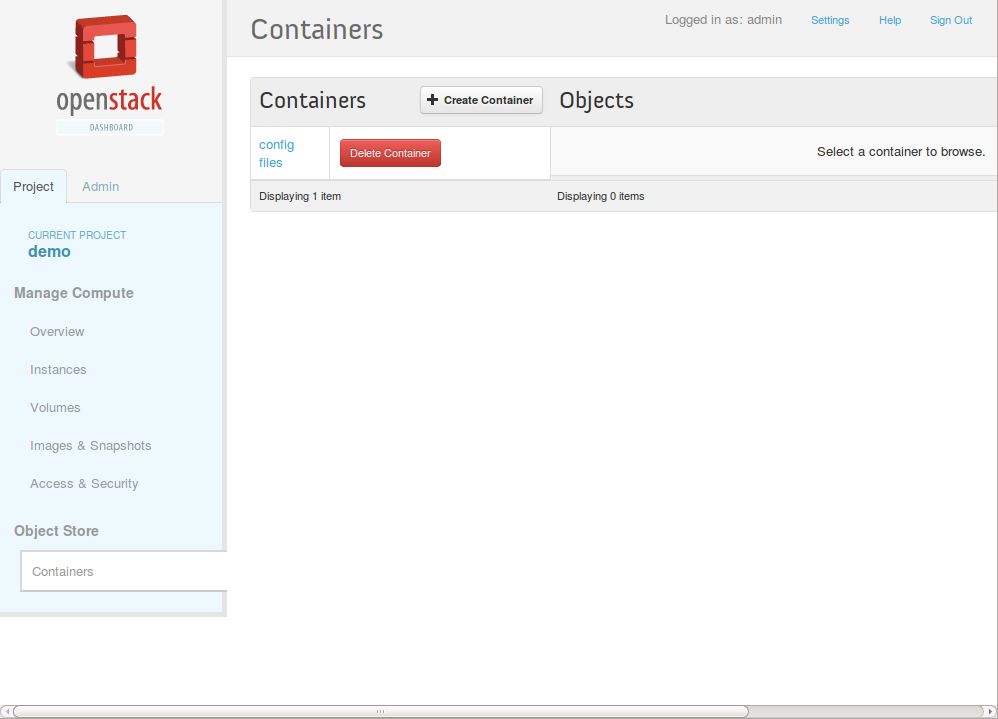

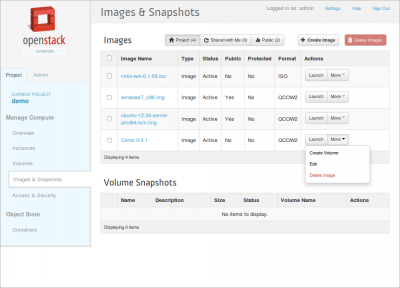

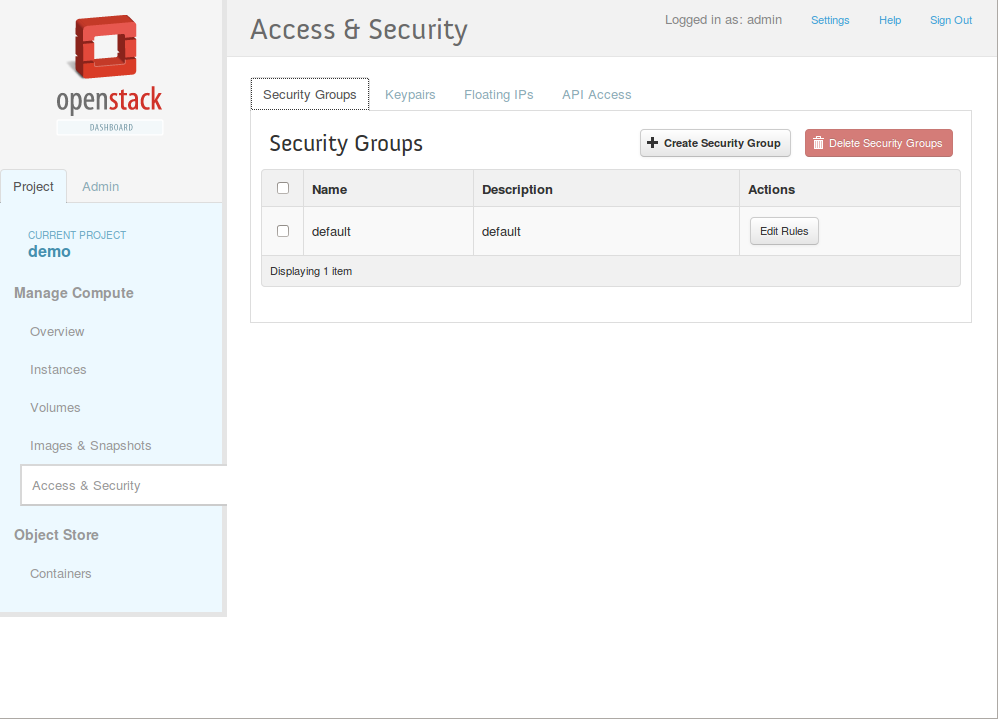

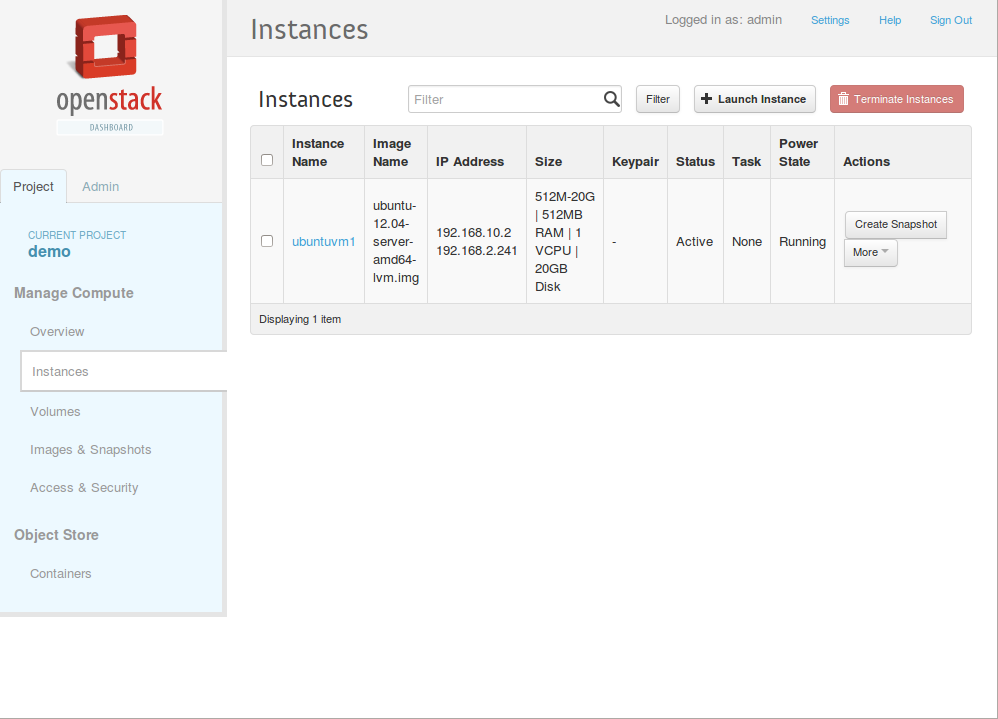

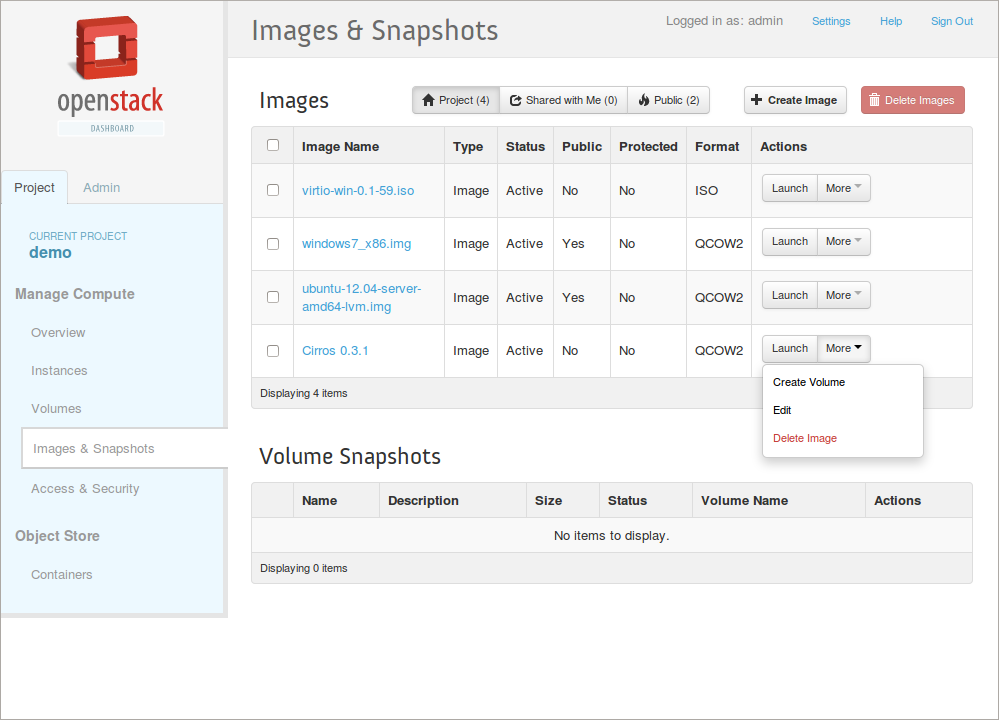

随便杂散的抓了一些图,给没有接触过openstack的一些直观的印象。
并不是openstack的功能有多强大,而是提供了丰富的API,可以自己写代码来控制,这个才是最关键的地方。
OpenStack的一些抓图
- oneleaf
- 论坛管理员
- 帖子: 10448
- 注册时间: 2005-03-27 0:06
- 系统: Ubuntu 12.04
- eexpress
- 帖子: 58428
- 注册时间: 2005-08-14 21:55
- 来自: 长沙
- oneleaf
- 论坛管理员
- 帖子: 10448
- 注册时间: 2005-03-27 0:06
- 系统: Ubuntu 12.04
Re: OpenStack的一些抓图
用于搭建虚拟机,将一台服务器分割为其它的小服务器使用。
- susbarbatus
- 帖子: 2966
- 注册时间: 2010-04-10 16:14
- 系统: Arch Linux
- phoenixlzx
- 帖子: 2245
- 注册时间: 2009-07-29 20:11
- 系统: Arch Linux
- 来自: Gensokyo
- 联系:
Re: OpenStack的一些抓图
只用 devstack 部署成功过一次,这玩意真心难搞啊...必须按照manual一步步来不能有一点差错。
- oneleaf
- 论坛管理员
- 帖子: 10448
- 注册时间: 2005-03-27 0:06
- 系统: Ubuntu 12.04
Re: OpenStack的一些抓图
这个是针对应用的基本参数,可以了解到命令的强大。
代码: 全选
$ nova
usage: nova [--version] [--debug] [--os-cache] [--timings]
[--timeout <seconds>] [--os-username <auth-user-name>]
[--os-password <auth-password>]
[--os-tenant-name <auth-tenant-name>] [--os-auth-url <auth-url>]
[--os-region-name <region-name>] [--os-auth-system <auth-system>]
[--service-type <service-type>] [--service-name <service-name>]
[--volume-service-name <volume-service-name>]
[--endpoint-type <endpoint-type>]
[--os-compute-api-version <compute-api-ver>]
[--os-cacert <ca-certificate>] [--insecure]
[--bypass-url <bypass-url>]
<subcommand> ...
Command-line interface to the OpenStack Nova API.
Positional arguments:
<subcommand>
absolute-limits Print a list of absolute limits for a user
add-fixed-ip Add new IP address on a network to server.
add-floating-ip Add a floating IP address to a server.
add-secgroup Add a Security Group to a server.
agent-create Creates a new agent build.
agent-delete Deletes an existing agent build.
agent-list List all builds
agent-modify Modify an existing agent build.
aggregate-add-host Add the host to the specified aggregate.
aggregate-create Create a new aggregate with the specified details.
aggregate-delete Delete the aggregate by its id.
aggregate-details Show details of the specified aggregate.
aggregate-list Print a list of all aggregates.
aggregate-remove-host
Remove the specified host from the specified
aggregate.
aggregate-set-metadata
Update the metadata associated with the aggregate.
aggregate-update Update the aggregate's name and optionally
availability zone.
availability-zone-list
List all the availability zones.
backup Backup a instance by create a 'backup' type snapshot
boot Boot a new server.
clear-password Clear password for a server.
cloudpipe-configure
Update the VPN IP/port of a cloudpipe instance
cloudpipe-create Create a cloudpipe instance for the given project
cloudpipe-list Print a list of all cloudpipe instances.
console-log Get console log output of a server.
coverage-report Generate a coverage report
coverage-start Start Nova coverage reporting
coverage-stop Stop Nova coverage reporting
credentials Show user credentials returned from auth
delete Immediately shut down and delete specified server(s).
diagnostics Retrieve server diagnostics.
dns-create Create a DNS entry for domain, name and ip.
dns-create-private-domain
Create the specified DNS domain.
dns-create-public-domain
Create the specified DNS domain.
dns-delete Delete the specified DNS entry.
dns-delete-domain Delete the specified DNS domain.
dns-domains Print a list of available dns domains.
dns-list List current DNS entries for domain and ip or domain
and name.
endpoints Discover endpoints that get returned from the
authenticate services
evacuate Evacuate server from failed host to specified one.
fixed-ip-get Get info on a fixed ip
fixed-ip-reserve Reserve a fixed ip
fixed-ip-unreserve Unreserve a fixed ip
flavor-access-add Add flavor access for the given tenant.
flavor-access-list Print access information about the given flavor.
flavor-access-remove
Remove flavor access for the given tenant.
flavor-create Create a new flavor
flavor-delete Delete a specific flavor
flavor-key Set or unset extra_spec for a flavor.
flavor-list Print a list of available 'flavors' (sizes of
servers).
flavor-show Show details about the given flavor.
floating-ip-bulk-create
Bulk create floating ips by range
floating-ip-bulk-delete
Bulk delete floating ips by range
floating-ip-bulk-list
List all floating ips
floating-ip-create Allocate a floating IP for the current tenant.
floating-ip-delete De-allocate a floating IP.
floating-ip-list List floating ips for this tenant.
floating-ip-pool-list
List all floating ip pools.
get-password Get password for a server.
get-spice-console Get a spice console to a server.
get-vnc-console Get a vnc console to a server.
host-action Perform a power action on a host.
host-describe Describe a specific host
host-list List all hosts by service
host-update Update host settings.
hypervisor-list List hypervisors.
hypervisor-servers List instances belonging to specific hypervisors.
hypervisor-show Display the details of the specified hypervisor.
hypervisor-stats Get hypervisor statistics over all compute nodes.
hypervisor-uptime Display the uptime of the specified hypervisor.
image-create Create a new image by taking a snapshot of a running
server.
image-delete Delete an image.
image-list Print a list of available images to boot from.
image-meta Set or Delete metadata on an image.
image-show Show details about the given image.
interface-attach Attach a network interface to an instance.
interface-detach Detach a network interface from an instance.
interface-list List interfaces attached to an instance.
keypair-add Create a new key pair for use with instances
keypair-delete Delete keypair by its name
keypair-list Print a list of keypairs for a user
list List active servers.
live-migration Migrates a running instance to a new machine.
lock Lock a server.
meta Set or Delete metadata on a server.
migrate Migrate a server. The new host will be selected by the
scheduler.
network-associate-host
Associate host with network.
network-associate-project
Associate project with network.
network-create Create a network.
network-disassociate
Disassociate host and/or project from the given
network.
network-list Print a list of available networks.
network-show Show details about the given network.
pause Pause a server.
quota-class-show List the quotas for a quota class.
quota-class-update Update the quotas for a quota class.
quota-defaults List the default quotas for a tenant.
quota-show List the quotas for a tenant.
quota-update Update the quotas for a tenant.
rate-limits Print a list of rate limits for a user
reboot Reboot a server.
rebuild Shutdown, re-image, and re-boot a server.
remove-fixed-ip Remove an IP address from a server.
remove-floating-ip Remove a floating IP address from a server.
remove-secgroup Remove a Security Group from a server.
rename Rename a server.
rescue Rescue a server.
reset-network Reset network of an instance.
reset-state Reset the state of an instance
resize Resize a server.
resize-confirm Confirm a previous resize.
resize-revert Revert a previous resize (and return to the previous
VM).
resume Resume a server.
root-password Change the root password for a server.
scrub Deletes data associated with the project
secgroup-add-group-rule
Add a source group rule to a security group.
secgroup-add-rule Add a rule to a security group.
secgroup-create Create a security group.
secgroup-delete Delete a security group.
secgroup-delete-group-rule
Delete a source group rule from a security group.
secgroup-delete-rule
Delete a rule from a security group.
secgroup-list List security groups for the current tenant.
secgroup-list-rules
List rules for a security group.
service-disable Enable the service
service-enable Enable the service
service-list Show a list of all running services. Filter by host &
binary.
show Show details about the given server.
ssh SSH into a server.
start Start a server.
stop Stop a server.
suspend Suspend a server.
unlock Unlock a server.
unpause Unpause a server.
unrescue Unrescue a server.
usage Show usage data for a single tenant
usage-list List usage data for all tenants
volume-attach Attach a volume to a server.
volume-create Add a new volume.
volume-delete Remove a volume.
volume-detach Detach a volume from a server.
volume-list List all the volumes.
volume-show Show details about a volume.
volume-snapshot-create
Add a new snapshot.
volume-snapshot-delete
Remove a snapshot.
volume-snapshot-list
List all the snapshots.
volume-snapshot-show
Show details about a snapshot.
volume-type-create Create a new volume type.
volume-type-delete Delete a specific flavor
volume-type-list Print a list of available 'volume types'.
x509-create-cert Create x509 cert for a user in tenant
x509-get-root-cert Fetches the x509 root cert.
bash-completion Prints all of the commands and options to stdout so
that the
help Display help about this program or one of its
subcommands.
net Show a network
net-create Create a network
net-delete Delete a network
net-list List networks
instance-action Show an action.
instance-action-list
List actions on a server.
baremetal-interface-add
Add a network interface to a baremetal node
baremetal-interface-list
List network interfaces associated with a baremetal
node
baremetal-interface-remove
Remove a network interface from a baremetal node
baremetal-node-create
Create a baremetal node
baremetal-node-delete
Remove a baremetal node and any associated interfaces
baremetal-node-list
Print a list of available baremetal nodes
baremetal-node-show
Show information about a baremetal node
list-extensions List all the os-api extensions that are available.
Optional arguments:
--version show program's version number and exit
--debug Print debugging output
--os-cache Use the auth token cache.
--timings Print call timing info
--timeout <seconds> Set HTTP call timeout (in seconds)
--os-username <auth-user-name>
Defaults to env[OS_USERNAME].
--os-password <auth-password>
Defaults to env[OS_PASSWORD].
--os-tenant-name <auth-tenant-name>
Defaults to env[OS_TENANT_NAME].
--os-auth-url <auth-url>
Defaults to env[OS_AUTH_URL].
--os-region-name <region-name>
Defaults to env[OS_REGION_NAME].
--os-auth-system <auth-system>
Defaults to env[OS_AUTH_SYSTEM].
--service-type <service-type>
Defaults to compute for most actions
--service-name <service-name>
Defaults to env[NOVA_SERVICE_NAME]
--volume-service-name <volume-service-name>
Defaults to env[NOVA_VOLUME_SERVICE_NAME]
--endpoint-type <endpoint-type>
Defaults to env[NOVA_ENDPOINT_TYPE] or publicURL.
--os-compute-api-version <compute-api-ver>
Accepts 1.1, defaults to env[OS_COMPUTE_API_VERSION].
--os-cacert <ca-certificate>
Specify a CA bundle file to use in verifying a TLS
(https) server certificate. Defaults to env[OS_CACERT]
--insecure Explicitly allow novaclient to perform "insecure" SSL
(https) requests. The server's certificate will not be
verified against any certificate authorities. This
option should be used with caution.
--bypass-url <bypass-url>
Use this API endpoint instead of the Service Catalog
See "nova help COMMAND" for help on a specific command.
