Ralink RT2870的驱动安装编译出错！

包含网卡/无线网的网络问题和ADSL/校园网/宽带拨号支持及代理/共享等网络使用问题
回复
maple0730
帖子： 51
注册时间： 2008-07-26 16:34

Ralink RT2870的驱动安装编译出错！

#1

帖子 由 maple0730 »

拓实的N95的一个USB无线网卡， 已经官方论坛上面下载了驱动，但是编译的时候的出现两个错误，小白已经折腾了两天
但是还是安装不上去，求指导！


以下为编译出错的错误信息！

代码： 全选

make -C tools
make[1]: Entering directory `/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/tools'
gcc -g bin2h.c -o bin2h
make[1]: Leaving directory `/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/tools'
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/tools/bin2h
cp -f os/linux/Makefile.6 /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/Makefile
make -C /lib/modules/3.2.6/build SUBDIRS=/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux modules
make[1]: Entering directory `/usr/src/linux-source-3.2.6'

  WARNING: Symbol version dump /usr/src/linux-source-3.2.6/Module.symvers
           is missing; modules will have no dependencies and modversions.

  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_md5.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_sha2.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_hmac.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_aes.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_aes.c: In function ‘AES_GTK_KEY_WRAP’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_aes.c:2265: warning: the frame size of 1100 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_aes.c: In function ‘WscDecryptData’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_aes.c:1592: warning: the frame size of 1356 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_aes.c: In function ‘WscEncryptData’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_aes.c:1522: warning: the frame size of 1356 bytes is larger than 1024 bytes
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/crypt_arc4.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/mlme.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/mlme.c: In function ‘BssTableSortByRssi’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/mlme.c:6100: warning: the frame size of 1720 bytes is larger than 1024 bytes
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_wep.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/action.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_data.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/rtmp_init.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_tkip.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_aes.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_sync.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/eeprom.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_sanity.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_info.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_cfg.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_wpa.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/dfs.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/spectrum.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/rtmp_timer.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/rt_channel.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_profile.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_asic.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_cmd.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/assoc.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/auth.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/auth_rsp.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c: In function ‘PeerBeacon’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c:1764: warning: the frame size of 1308 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c: In function ‘PeerBeaconAtJoinAction’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c:1094: warning: the frame size of 1296 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c: In function ‘PeerBeaconAtScanAction’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c:764: warning: the frame size of 1264 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c: In function ‘MlmeStartReqAction’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sync.c:581: warning: the frame size of 1064 bytes is larger than 1024 bytes
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sanity.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/rtmp_data.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/connect.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/connect.c: In function ‘CntlOidScanProc’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/connect.c:355: warning: the frame size of 1748 bytes is larger than 1024 bytes
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/wpa.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/ags.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../sta/sta_cfg.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/rtmp_init_inf.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_profile.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c: In function ‘rt_ioctl_siwencode’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c:1479: warning: suggest parentheses around operand of ‘!’ or change ‘&’ to ‘&&’ or ‘!’ to ‘~’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c: In function ‘rt_ioctl_iwaplist’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c:599: warning: the frame size of 1284 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c: In function ‘rt_ioctl_siwmlme’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c:1979: warning: the frame size of 1652 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c: In function ‘RTMPIoctlE2PROM’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c:6035: warning: the frame size of 1348 bytes is larger than 1024 bytes
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c: In function ‘RTMPIoctlMAC’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/sta_ioctl.c:5836: warning: the frame size of 1344 bytes is larger than 1024 bytes
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_linux.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_linux.c: In function ‘RtmpOSNetDevDetach’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_linux.c:1694: warning: initialization discards qualifiers from pointer target type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_linux.c: In function ‘RtmpOSNetDevAttach’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_linux.c:1731: warning: initialization discards qualifiers from pointer target type
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_main_dev.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_main_dev.c: In function ‘MainVirtualIF_close’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../os/linux/rt_main_dev.c:117: warning: unused variable ‘Cancelled’
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/ba_action.o
  CC [M]  /root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.o
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c: In function ‘RTMPAllocUsbBulkBufStruct’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:52: error: implicit declaration of function ‘usb_buffer_alloc’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:52: warning: assignment makes pointer from integer without a cast
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c: In function ‘RTMPFreeUsbBulkBufStruct’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:78: error: implicit declaration of function ‘usb_buffer_free’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c: In function ‘RTMPFreeTxRxRingMemory’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:234: warning: passing argument 3 of ‘RTMPFreeUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:62: note: expected ‘UCHAR **’ but argument is of type ‘struct __TX_BUFFER **’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:241: warning: passing argument 3 of ‘RTMPFreeUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:62: note: expected ‘UCHAR **’ but argument is of type ‘struct __TX_BUFFER **’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:278: warning: passing argument 3 of ‘RTMPFreeUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:62: note: expected ‘UCHAR **’ but argument is of type ‘struct __HTTX_BUFFER **’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c: In function ‘NICInitTransmit’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:507: warning: passing argument 3 of ‘RTMPFreeUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:62: note: expected ‘UCHAR **’ but argument is of type ‘struct __TX_BUFFER **’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c: In function ‘RTMPAllocTxRxRingMemory’:
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:566: warning: passing argument 3 of ‘RTMPAllocUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:34: note: expected ‘VOID **’ but argument is of type ‘struct __HTTX_BUFFER **’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:596: warning: passing argument 3 of ‘RTMPAllocUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:34: note: expected ‘VOID **’ but argument is of type ‘struct __TX_BUFFER **’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:610: warning: passing argument 3 of ‘RTMPAllocUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:34: note: expected ‘VOID **’ but argument is of type ‘struct __TX_BUFFER **’
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:628: warning: passing argument 3 of ‘RTMPAllocUsbBulkBufStruct’ from incompatible pointer type
/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.c:34: note: expected ‘VOID **’ but argument is of type ‘UCHAR **’
make[2]: *** [/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux/../../common/cmm_mac_usb.o] Error 1
make[1]: *** [_module_/root/Desktop/2010_0709_RT2870_Linux_STA_v2.4.0.1/os/linux] Error 2
make[1]: Leaving directory `/usr/src/linux-source-3.2.6'
make: *** [LINUX] Error 2
页首
135791050
帖子： 2
注册时间： 2008-10-26 21:04

Re: Ralink RT2870的驱动安装编译出错！

#2

帖子 由 135791050 »

查看README_STA_usb文件，里面有安装方法和设置。

1>解压


2> 打开Makefile
设置"MODE = STA"
"TARGET = LINUX"


3> In os/linux/config.mk
** Build for being controlled by NetworkManager or wpa_supplicant wext functions
'HAS_WPA_SUPPLICANT=y'
'HAS_NATIVE_WPA_SUPPLICANT_SUPPORT=y'.

** Build for being controlled by WpaSupplicant with Ralink Driver
'HAS_WPA_SUPPLICANT=y'
'HAS_NATIVE_WPA_SUPPLICANT_SUPPORT=n'.


4> sudo make


5>sudo make install

6>sudo reboot
打开系统设置-附加驱动，看到（RT2870 Wireless Lan Linux Driver）激活
OK
页首
135791050
帖子： 2
注册时间： 2008-10-26 21:04

Re: Ralink RT2870的驱动安装编译出错！

#3

帖子 由 135791050 »

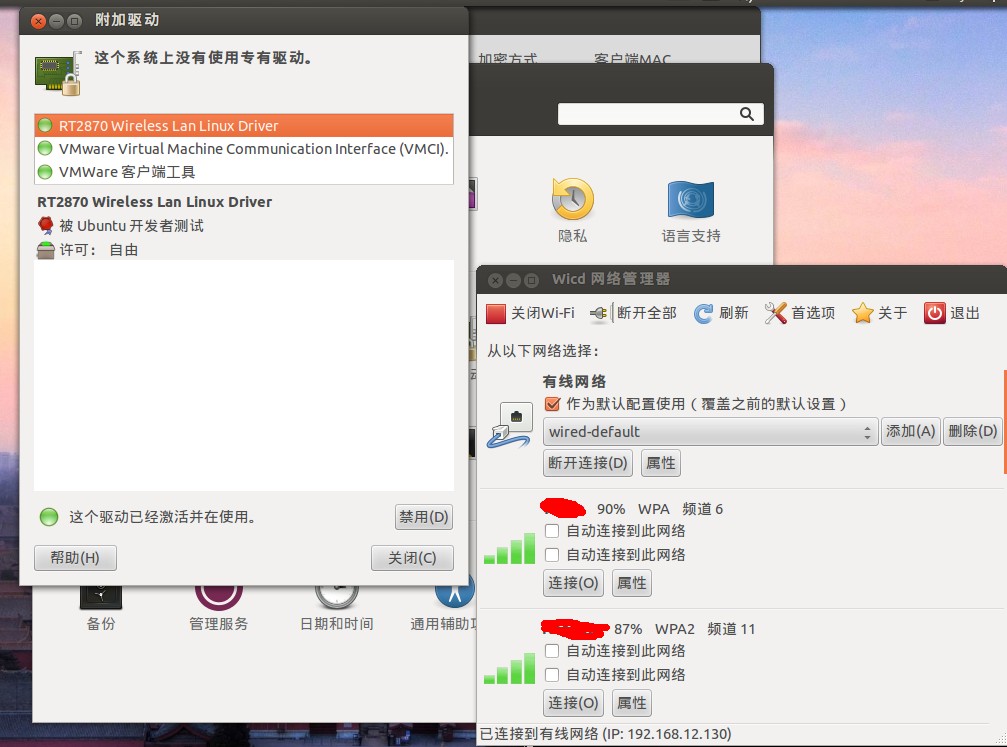

看看我在vm里面的效果
附件
页首
ethan2016s
帖子： 50
注册时间： 2015-10-17 19:04
系统： ubuntu win7

Re: Ralink RT2870的驱动安装编译出错！

#4

帖子 由 ethan2016s »

我也遇到同样的问题,编译报错.按照2楼的方法,仍然不行.哪位大神能够help me.
====================================================
[email protected]
