ubuntu 9.10下ATI HD系列显卡安装开源驱动开启3D

[tomjohn]

弱弱地问一下：从哪儿得到密钥啊？
为何总是不对啊？
我下的三个文件是rc7版的。

[wangliang87]

请问楼主，如果ubuntu的内核升级了，这个驱动还能用吗？
或者说，如果将来10.04出来了，这个驱动还能用吗？

[acid303]

这是一个开发中的驱动，将来10.04应该是用这个驱动吧

[zblkf]

OpenGL vendor string: Mesa Project
OpenGL renderer string: Software Rasterizer
OpenGL version string: 2.1 Mesa 7.6
OpenGL shading language version string: 1.20
OpenGL extensions:
还是不行啊

[acid303]

LS的还没安装好阿，mesa还是7.6

[attgo]

代码： 全选

glxinfo |grep -i opengl
OpenGL vendor string: Mesa Project
OpenGL renderer string: Software Rasterizer
OpenGL version string: 2.1 Mesa 7.6
OpenGL shading language version string: 1.20
OpenGL extensions:

不对路阿 ，我是IBM的 X300显卡 ，没有希望了吗？

[mymathersname]

嗯嗯，Mark……

[acid303]

不对路阿 ，我是IBM的 X300显卡 ，没有希望了吗？

这个我也不知道阿,HD以前的显卡不是默认就可以开3D吗

[panlilu]

我的情况和78楼一样啊～谁知道是哪里出问题了么？

[acid303]

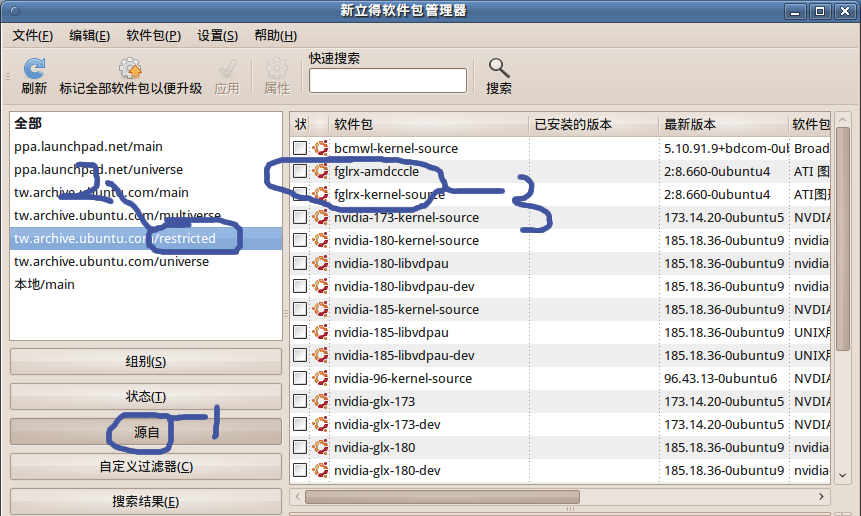

1、打开新立得，选择 源自 -- 然后在左上方选择以restricted结尾的源 -- 将所有已安装的软件包彻底删除（上图是我删除后的截图，除了圈起的两个包还有一些）
2、看一下有没有/etc/X11/xorg.conf这个文件，有的话：sudo rm /etc/X11/xorg.conf 把他删了
3、重启后应该能恢复正常

[panlilu]

88楼的百度图片看不到= =

[acid303]

为什么每次都这样

[panlilu]

1、打开新立得，选择 源自 -- 然后在左上方选择以restricted结尾的源 -- 将所有已安装的软件包彻底删除（上图是我删除后的截图，除了圈起的两个包还有一些）
2、看一下有没有/etc/X11/xorg.conf这个文件，有的话：sudo rm /etc/X11/xorg.conf 把他删了
3、重启后应该能恢复正常

谢谢～原来是我的ati受限驱动没有删除干净，感谢～我的hd2400 64位，目前感觉很好～～～

[walexw]

hao ma fa aa

[felix168]

对于安装失败的同学，我的建议是：
1、确定你的ati私有驱动完全删除了
2、删除 /etc/X11/xorg.conf (原始系统是没有的)
3、确认你现在的内核是2.6.32……

如果还是不能解决，请输入：gedit /var/log/Xorg.0.log，复制全部内容贴到论坛上让大家帮你解决

还是不行阿
OpenGL vendor string: Mesa Project
OpenGL renderer string: Software Rasterizer
OpenGL version string: 2.1 Mesa 7.6
OpenGL shading language version string: 1.20
OpenGL extensions:

X.Org X Server 1.6.4
Release Date: 2009-9-27
X Protocol Version 11, Revision 0
Build Operating System: Linux 2.6.24-23-server i686 Ubuntu
Current Operating System: Linux felix 2.6.32-020632rc6-generic #020632rc6 SMP Wed Nov 4 10:54:30 UTC 2009 i686
Kernel command line: BOOT_IMAGE=/boot/vmlinuz-2.6.32-020632rc6-generic root=UUID=960a1553-542f-40e0-8492-cefecc10fb95 ro quiet splash
Build Date: 26 October 2009 05:15:02PM
xorg-server 2:1.6.4-2ubuntu4 (buildd@)
Before reporting problems, check http://wiki.x.org
to make sure that you have the latest version.
Markers: (--) probed, (**) from config file, (==) default setting,
(++) from command line, (!!) notice, (II) informational,
(WW) warning, (EE) error, (NI) not implemented, (??) unknown.
(==) Log file: "/var/log/Xorg.0.log", Time: Mon Nov 30 17:56:50 2009
(II) Loader magic: 0x3bc0
(II) Module ABI versions:
X.Org ANSI C Emulation: 0.4
X.Org Video Driver: 5.0
X.Org XInput driver : 4.0
X.Org Server Extension : 2.0
(II) Loader running on linux
(++) using VT number 7

(--) PCI:*(0:2:0:0) 1002:94c3:0000:0000 ATI Technologies Inc RV610 video device [Radeon HD 2400 PRO] rev 0, Mem @ 0xe0000000/268435456, 0xfdde0000/65536, I/O @ 0x0000bc00/256, BIOS @ 0x????????/131072
(==) Using default built-in configuration (30 lines)
(==) --- Start of built-in configuration ---
Section "Device"
Identifier "Builtin Default ati Device 0"
Driver "ati"
EndSection
Section "Screen"
Identifier "Builtin Default ati Screen 0"
Device "Builtin Default ati Device 0"
EndSection
Section "Device"
Identifier "Builtin Default vesa Device 0"
Driver "vesa"
EndSection
Section "Screen"
Identifier "Builtin Default vesa Screen 0"
Device "Builtin Default vesa Device 0"
EndSection
Section "Device"
Identifier "Builtin Default fbdev Device 0"
Driver "fbdev"
EndSection
Section "Screen"
Identifier "Builtin Default fbdev Screen 0"
Device "Builtin Default fbdev Device 0"
EndSection
Section "ServerLayout"
Identifier "Builtin Default Layout"
Screen "Builtin Default ati Screen 0"
Screen "Builtin Default vesa Screen 0"
Screen "Builtin Default fbdev Screen 0"
EndSection
(==) --- End of built-in configuration ---
(==) ServerLayout "Builtin Default Layout"
(**) |-->Screen "Builtin Default ati Screen 0" (0)
(**) | |-->Monitor "<default monitor>"
(**) | |-->Device "Builtin Default ati Device 0"
(==) No monitor specified for screen "Builtin Default ati Screen 0".
Using a default monitor configuration.
(**) |-->Screen "Builtin Default vesa Screen 0" (1)
(**) | |-->Monitor "<default monitor>"
(**) | |-->Device "Builtin Default vesa Device 0"
(==) No monitor specified for screen "Builtin Default vesa Screen 0".
Using a default monitor configuration.
(**) |-->Screen "Builtin Default fbdev Screen 0" (2)
(**) | |-->Monitor "<default monitor>"
(**) | |-->Device "Builtin Default fbdev Device 0"
(==) No monitor specified for screen "Builtin Default fbdev Screen 0".
Using a default monitor configuration.
(==) Automatically adding devices
(==) Automatically enabling devices
(WW) The directory "/usr/share/fonts/X11/cyrillic" does not exist.
Entry deleted from font path.
(==) FontPath set to:
/usr/share/fonts/X11/misc,
/usr/share/fonts/X11/100dpi/:unscaled,
/usr/share/fonts/X11/75dpi/:unscaled,
/usr/share/fonts/X11/Type1,
/usr/share/fonts/X11/100dpi,
/usr/share/fonts/X11/75dpi,
/var/lib/defoma/x-ttcidfont-conf.d/dirs/TrueType,
built-ins
(==) ModulePath set to "/usr/lib/xorg/modules"
(II) Cannot locate a core pointer device.
(II) Cannot locate a core keyboard device.
(II) The server relies on HAL to provide the list of input devices.
If no devices become available, reconfigure HAL or disable AllowEmptyInput.
(II) Open ACPI successful (/var/run/acpid.socket)
(II) System resource ranges:
[0] -1 0 0xffffffff - 0xffffffff (0x1) MX
[1] -1 0 0x000f0000 - 0x000fffff (0x10000) MX
[2] -1 0 0x000c0000 - 0x000effff (0x30000) MX
[3] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX
[4] -1 0 0xffffffff - 0xffffffff (0x1) MX
[5] -1 0 0x000f0000 - 0x000fffff (0x10000) MX
[6] -1 0 0x000c0000 - 0x000effff (0x30000) MX
[7] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX
[8] -1 0 0xffffffff - 0xffffffff (0x1) MX
[9] -1 0 0x000f0000 - 0x000fffff (0x10000) MX
[10] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[11] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[12] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[13] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[14] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[15] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[16] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[17] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[18] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[19] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[20] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[21] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[22] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[23] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
(II) LoadModule: "extmod"
(II) Loading /usr/lib/xorg/modules/extensions//libextmod.so
(II) Module extmod: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.0.0
Module class: X.Org Server Extension
ABI class: X.Org Server Extension, version 2.0
(II) Loading extension MIT-SCREEN-SAVER
(II) Loading extension XFree86-VidModeExtension
(II) Loading extension XFree86-DGA
(II) Loading extension DPMS
(II) Loading extension XVideo
(II) Loading extension XVideo-MotionCompensation
(II) Loading extension X-Resource
(II) LoadModule: "dbe"
(II) Loading /usr/lib/xorg/modules/extensions//libdbe.so
(II) Module dbe: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.0.0
Module class: X.Org Server Extension
ABI class: X.Org Server Extension, version 2.0
(II) Loading extension DOUBLE-BUFFER
(II) LoadModule: "glx"
(II) Loading /usr/lib/xorg/modules/extensions//libglx.so
(II) Module glx: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.0.0
ABI class: X.Org Server Extension, version 2.0
(==) AIGLX enabled
(II) Loading extension GLX
(II) LoadModule: "record"
(II) Loading /usr/lib/xorg/modules/extensions//librecord.so
(II) Module record: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.13.0
Module class: X.Org Server Extension
ABI class: X.Org Server Extension, version 2.0
(II) Loading extension RECORD
(II) LoadModule: "dri"
(II) Loading /usr/lib/xorg/modules/extensions//libdri.so
(II) Module dri: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.0.0
ABI class: X.Org Server Extension, version 2.0
(II) Loading extension XFree86-DRI
(II) LoadModule: "dri2"
(II) Loading /usr/lib/xorg/modules/extensions//libdri2.so
(II) Module dri2: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.1.0
ABI class: X.Org Server Extension, version 2.0
(II) Loading extension DRI2
(II) LoadModule: "ati"
(II) Loading /usr/lib/xorg/modules/drivers//ati_drv.so
(II) Module ati: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 6.12.99
Module class: X.Org Video Driver
ABI class: X.Org Video Driver, version 5.0
(II) LoadModule: "radeon"
(II) Loading /usr/lib/xorg/modules/drivers//radeon_drv.so
(II) Module radeon: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 6.12.99
Module class: X.Org Video Driver
ABI class: X.Org Video Driver, version 5.0
(II) LoadModule: "vesa"
(II) Loading /usr/lib/xorg/modules/drivers//vesa_drv.so
(II) Module vesa: vendor="X.Org Foundation"
compiled for 1.6.3, module version = 2.2.1
Module class: X.Org Video Driver
ABI class: X.Org Video Driver, version 5.0
(II) LoadModule: "fbdev"
(II) Loading /usr/lib/xorg/modules/drivers//fbdev_drv.so
(II) Module fbdev: vendor="X.Org Foundation"
compiled for 1.6.0, module version = 0.4.0
ABI class: X.Org Video Driver, version 5.0
(II) RADEON: Driver for ATI Radeon chipsets:
ATI Radeon Mobility X600 (M24) 3150 (PCIE), ATI FireMV 2400 (PCI),
ATI Radeon Mobility X300 (M24) 3152 (PCIE),
ATI FireGL M24 GL 3154 (PCIE), ATI Radeon X600 (RV380) 3E50 (PCIE),
ATI FireGL V3200 (RV380) 3E54 (PCIE), ATI Radeon IGP320 (A3) 4136,
ATI Radeon IGP330/340/350 (A4) 4137, ATI Radeon 9500 AD (AGP),
ATI Radeon 9500 AE (AGP), ATI Radeon 9600TX AF (AGP),
ATI FireGL Z1 AG (AGP), ATI Radeon 9800SE AH (AGP),
ATI Radeon 9800 AI (AGP), ATI Radeon 9800 AJ (AGP),
ATI FireGL X2 AK (AGP), ATI Radeon 9600 AP (AGP),
ATI Radeon 9600SE AQ (AGP), ATI Radeon 9600XT AR (AGP),
ATI Radeon 9600 AS (AGP), ATI FireGL T2 AT (AGP), ATI Radeon 9650,
ATI FireGL RV360 AV (AGP), ATI Radeon 7000 IGP (A4+) 4237,
ATI Radeon 8500 AIW BB (AGP), ATI Radeon 8500 AIW BC (AGP),
ATI Radeon IGP320M (U1) 4336, ATI Radeon IGP330M/340M/350M (U2) 4337,
ATI Radeon Mobility 7000 IGP 4437, ATI Radeon 9000/PRO If (AGP/PCI),
ATI Radeon 9000 Ig (AGP/PCI), ATI Radeon X800 (R420) JH (AGP),
ATI Radeon X800PRO (R420) JI (AGP),
ATI Radeon X800SE (R420) JJ (AGP), ATI Radeon X800 (R420) JK (AGP),
ATI Radeon X800 (R420) JL (AGP), ATI FireGL X3 (R420) JM (AGP),
ATI Radeon Mobility 9800 (M18) JN (AGP),
ATI Radeon X800 SE (R420) (AGP), ATI Radeon X800XT (R420) JP (AGP),
ATI Radeon X800 VE (R420) JT (AGP), ATI Radeon X850 (R480) (AGP),
ATI Radeon X850 XT (R480) (AGP), ATI Radeon X850 SE (R480) (AGP),
ATI Radeon X850 PRO (R480) (AGP), ATI Radeon X850 XT PE (R480) (AGP),
ATI Radeon Mobility M7 LW (AGP),
ATI Mobility FireGL 7800 M7 LX (AGP),
ATI Radeon Mobility M6 LY (AGP), ATI Radeon Mobility M6 LZ (AGP),
ATI FireGL Mobility 9000 (M9) Ld (AGP),
ATI Radeon Mobility 9000 (M9) Lf (AGP),
ATI Radeon Mobility 9000 (M9) Lg (AGP), ATI Radeon 9700 Pro ND (AGP),
ATI Radeon 9700/9500Pro NE (AGP), ATI Radeon 9600TX NF (AGP),
ATI FireGL X1 NG (AGP), ATI Radeon 9800PRO NH (AGP),
ATI Radeon 9800 NI (AGP), ATI FireGL X2 NK (AGP),
ATI Radeon 9800XT NJ (AGP),
ATI Radeon Mobility 9600/9700 (M10/M11) NP (AGP),
ATI Radeon Mobility 9600 (M10) NQ (AGP),
ATI Radeon Mobility 9600 (M11) NR (AGP),
ATI Radeon Mobility 9600 (M10) NS (AGP),
ATI FireGL Mobility T2 (M10) NT (AGP),
ATI FireGL Mobility T2e (M11) NV (AGP), ATI Radeon QD (AGP),
ATI Radeon QE (AGP), ATI Radeon QF (AGP), ATI Radeon QG (AGP),
ATI FireGL 8700/8800 QH (AGP), ATI Radeon 8500 QL (AGP),
ATI Radeon 9100 QM (AGP), ATI Radeon 7500 QW (AGP/PCI),
ATI Radeon 7500 QX (AGP/PCI), ATI Radeon VE/7000 QY (AGP/PCI),
ATI Radeon VE/7000 QZ (AGP/PCI), ATI ES1000 515E (PCI),
ATI Radeon Mobility X300 (M22) 5460 (PCIE),
ATI Radeon Mobility X600 SE (M24C) 5462 (PCIE),
ATI FireGL M22 GL 5464 (PCIE), ATI Radeon X800 (R423) UH (PCIE),
ATI Radeon X800PRO (R423) UI (PCIE),
ATI Radeon X800LE (R423) UJ (PCIE),
ATI Radeon X800SE (R423) UK (PCIE),
ATI Radeon X800 XTP (R430) (PCIE), ATI Radeon X800 XL (R430) (PCIE),
ATI Radeon X800 SE (R430) (PCIE), ATI Radeon X800 (R430) (PCIE),
ATI FireGL V7100 (R423) (PCIE), ATI FireGL V5100 (R423) UQ (PCIE),
ATI FireGL unknown (R423) UR (PCIE),
ATI FireGL unknown (R423) UT (PCIE),
ATI Mobility FireGL V5000 (M26) (PCIE),
ATI Mobility FireGL V5000 (M26) (PCIE),
ATI Mobility Radeon X700 XL (M26) (PCIE),
ATI Mobility Radeon X700 (M26) (PCIE),
ATI Mobility Radeon X700 (M26) (PCIE),
ATI Radeon X550XTX 5657 (PCIE), ATI Radeon 9100 IGP (A5) 5834,
ATI Radeon Mobility 9100 IGP (U3) 5835,
ATI Radeon XPRESS 200 5954 (PCIE),
ATI Radeon XPRESS 200M 5955 (PCIE), ATI Radeon 9250 5960 (AGP),
ATI Radeon 9200 5961 (AGP), ATI Radeon 9200 5962 (AGP),
ATI Radeon 9200SE 5964 (AGP), ATI FireMV 2200 (PCI),
ATI ES1000 5969 (PCI), ATI Radeon XPRESS 200 5974 (PCIE),
ATI Radeon XPRESS 200M 5975 (PCIE),
ATI Radeon XPRESS 200 5A41 (PCIE),
ATI Radeon XPRESS 200M 5A42 (PCIE),
ATI Radeon XPRESS 200 5A61 (PCIE),
ATI Radeon XPRESS 200M 5A62 (PCIE),
ATI Radeon X300 (RV370) 5B60 (PCIE),
ATI Radeon X600 (RV370) 5B62 (PCIE),
ATI Radeon X550 (RV370) 5B63 (PCIE),
ATI FireGL V3100 (RV370) 5B64 (PCIE),
ATI FireMV 2200 PCIE (RV370) 5B65 (PCIE),
ATI Radeon Mobility 9200 (M9+) 5C61 (AGP),
ATI Radeon Mobility 9200 (M9+) 5C63 (AGP),
ATI Mobility Radeon X800 XT (M28) (PCIE),
ATI Mobility FireGL V5100 (M28) (PCIE),
ATI Mobility Radeon X800 (M28) (PCIE), ATI Radeon X850 5D4C (PCIE),
ATI Radeon X850 XT PE (R480) (PCIE),
ATI Radeon X850 SE (R480) (PCIE), ATI Radeon X850 PRO (R480) (PCIE),
ATI unknown Radeon / FireGL (R480) 5D50 (PCIE),
ATI Radeon X850 XT (R480) (PCIE),
ATI Radeon X800XT (R423) 5D57 (PCIE),
ATI FireGL V5000 (RV410) (PCIE), ATI Radeon X700 XT (RV410) (PCIE),
ATI Radeon X700 PRO (RV410) (PCIE),
ATI Radeon X700 SE (RV410) (PCIE), ATI Radeon X700 (RV410) (PCIE),
ATI Radeon X700 SE (RV410) (PCIE), ATI Radeon X1800,
ATI Mobility Radeon X1800 XT, ATI Mobility Radeon X1800,
ATI Mobility FireGL V7200, ATI FireGL V7200, ATI FireGL V5300,
ATI Mobility FireGL V7100, ATI Radeon X1800, ATI Radeon X1800,
ATI Radeon X1800, ATI Radeon X1800, ATI Radeon X1800,
ATI FireGL V7300, ATI FireGL V7350, ATI Radeon X1600, ATI RV505,
ATI Radeon X1300/X1550, ATI Radeon X1550, ATI M54-GL,
ATI Mobility Radeon X1400, ATI Radeon X1300/X1550,
ATI Radeon X1550 64-bit, ATI Mobility Radeon X1300,
ATI Mobility Radeon X1300, ATI Mobility Radeon X1300,
ATI Mobility Radeon X1300, ATI Radeon X1300, ATI Radeon X1300,
ATI RV505, ATI RV505, ATI FireGL V3300, ATI FireGL V3350,
ATI Radeon X1300, ATI Radeon X1550 64-bit, ATI Radeon X1300/X1550,
ATI Radeon X1600, ATI Radeon X1300/X1550, ATI Mobility Radeon X1450,
ATI Radeon X1300/X1550, ATI Mobility Radeon X2300,
ATI Mobility Radeon X2300, ATI Mobility Radeon X1350,
ATI Mobility Radeon X1350, ATI Mobility Radeon X1450,
ATI Radeon X1300, ATI Radeon X1550, ATI Mobility Radeon X1350,
ATI FireMV 2250, ATI Radeon X1550 64-bit, ATI Radeon X1600,
ATI Radeon X1650, ATI Radeon X1600, ATI Radeon X1600,
ATI Mobility FireGL V5200, ATI Mobility Radeon X1600,
ATI Radeon X1650, ATI Radeon X1650, ATI Radeon X1600,
ATI Radeon X1300 XT/X1600 Pro, ATI FireGL V3400,
ATI Mobility FireGL V5250, ATI Mobility Radeon X1700,
ATI Mobility Radeon X1700 XT, ATI FireGL V5200,
ATI Mobility Radeon X1700, ATI Radeon X2300HD,
ATI Mobility Radeon HD 2300, ATI Mobility Radeon HD 2300,
ATI Radeon X1950, ATI Radeon X1900, ATI Radeon X1950,
ATI Radeon X1900, ATI Radeon X1900, ATI Radeon X1900,
ATI Radeon X1900, ATI Radeon X1900, ATI Radeon X1900,
ATI Radeon X1900, ATI Radeon X1900, ATI Radeon X1900,
ATI AMD Stream Processor, ATI Radeon X1900, ATI Radeon X1950,
ATI RV560, ATI RV560, ATI Mobility Radeon X1900, ATI RV560,
ATI Radeon X1950 GT, ATI RV570, ATI RV570, ATI FireGL V7400,
ATI RV560, ATI Radeon X1650, ATI Radeon X1650, ATI RV560,
ATI Radeon 9100 PRO IGP 7834, ATI Radeon Mobility 9200 IGP 7835,
ATI Radeon X1200, ATI Radeon X1200, ATI Radeon X1200,
ATI Radeon X1200, ATI Radeon X1200, ATI RS740, ATI RS740M, ATI RS740,
ATI RS740M, ATI Radeon HD 2900 XT, ATI Radeon HD 2900 XT,
ATI Radeon HD 2900 XT, ATI Radeon HD 2900 Pro, ATI Radeon HD 2900 GT,
ATI FireGL V8650, ATI FireGL V8600, ATI FireGL V7600,
ATI Radeon 4800 Series, ATI Radeon HD 4870 x2,
ATI Radeon 4800 Series, ATI Radeon HD 4850 x2,
ATI FirePro V8750 (FireGL), ATI FirePro V7760 (FireGL),
ATI Mobility RADEON HD 4850, ATI Mobility RADEON HD 4850 X2,
ATI Radeon 4800 Series, ATI FirePro RV770, AMD FireStream 9270,
AMD FireStream 9250, ATI FirePro V8700 (FireGL),
ATI Mobility RADEON HD 4870, ATI Mobility RADEON M98,
ATI Radeon 4800 Series, ATI Radeon 4800 Series, ATI FirePro M7750,
ATI M98, ATI M98, ATI M98, ATI Mobility Radeon HD 4650,
ATI Radeon RV730 (AGP), ATI Mobility Radeon HD 4670,
ATI FirePro M5750, ATI Radeon RV730 (AGP),
ATI RV730XT [Radeon HD 4670], ATI RADEON E4600,
ATI Radeon HD 4600 Series, ATI RV730 PRO [Radeon HD 4650],
ATI FirePro V7750 (FireGL), ATI FirePro V5700 (FireGL),
ATI FirePro V3750 (FireGL), ATI Mobility Radeon HD 4830,
ATI Mobility Radeon HD 4850, ATI FirePro M7740, ATI RV740,
ATI Radeon HD 4770, ATI Radeon HD 4700 Series, ATI Radeon HD 4770,
ATI FirePro M5750, ATI RV610, ATI Radeon HD 2400 XT,
ATI Radeon HD 2400 Pro, ATI Radeon HD 2400 PRO AGP, ATI FireGL V4000,
ATI RV610, ATI Radeon HD 2350, ATI Mobility Radeon HD 2400 XT,
ATI Mobility Radeon HD 2400, ATI RADEON E2400, ATI RV610,
ATI FireMV 2260, ATI RV670, ATI Radeon HD3870,
ATI Mobility Radeon HD 3850, ATI Radeon HD3850,
ATI Mobility Radeon HD 3850 X2, ATI RV670,
ATI Mobility Radeon HD 3870, ATI Mobility Radeon HD 3870 X2,
ATI Radeon HD3870 X2, ATI FireGL V7700, ATI Radeon HD3850,
ATI Radeon HD3690, AMD Firestream 9170, ATI Radeon HD 4550,
ATI Radeon RV710, ATI Radeon RV710, ATI Radeon HD 4350,
ATI Mobility Radeon 4300 Series, ATI Mobility Radeon 4500 Series,
ATI Mobility Radeon 4500 Series, ATI FirePro RG220, ATI RV630,
ATI Mobility Radeon HD 2600, ATI Mobility Radeon HD 2600 XT,
ATI Radeon HD 2600 XT AGP, ATI Radeon HD 2600 Pro AGP,
ATI Radeon HD 2600 XT, ATI Radeon HD 2600 Pro, ATI Gemini RV630,
ATI Gemini Mobility Radeon HD 2600 XT, ATI FireGL V5600,
ATI FireGL V3600, ATI Radeon HD 2600 LE,
ATI Mobility FireGL Graphics Processor, ATI Radeon RV710,
ATI Radeon HD 3470, ATI Mobility Radeon HD 3430,
ATI Mobility Radeon HD 3400 Series, ATI Radeon HD 3450,
ATI Radeon HD 3450, ATI Radeon HD 3430, ATI Radeon HD 3450,
ATI FirePro V3700, ATI FireMV 2450, ATI FireMV 2260, ATI FireMV 2260,
ATI Radeon HD 3600 Series, ATI Radeon HD 3650 AGP,
ATI Radeon HD 3600 PRO, ATI Radeon HD 3600 XT,
ATI Radeon HD 3600 PRO, ATI Mobility Radeon HD 3650,
ATI Mobility Radeon HD 3670, ATI Mobility FireGL V5700,
ATI Mobility FireGL V5725, ATI Radeon HD 3200 Graphics,
ATI Radeon 3100 Graphics, ATI Radeon HD 3200 Graphics,
ATI Radeon 3100 Graphics, ATI Radeon HD 3300 Graphics,
ATI Radeon HD 3200 Graphics, ATI Radeon 3000 Graphics,
ATI Radeon HD 4200, ATI Radeon 4100, ATI Mobility Radeon HD 4200,
ATI Mobility Radeon 4100, ATI RS880
(II) VESA: driver for VESA chipsets: vesa
(II) FBDEV: driver for framebuffer: fbdev
(II) Primary Device is: PCI 02@00:00:0
(II) resource ranges after xf86ClaimFixedResources() call:
[0] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[1] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[2] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[3] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[4] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[5] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[6] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[7] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[8] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[9] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[10] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[11] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[12] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[13] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[14] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[15] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[16] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[17] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[18] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[19] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[20] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[21] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[22] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[23] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
(II) [KMS] drm report modesetting isn't supported.
(WW) Falling back to old probe method for vesa
(WW) Falling back to old probe method for fbdev
(II) Loading sub module "fbdevhw"
(II) LoadModule: "fbdevhw"
(II) Loading /usr/lib/xorg/modules/linux//libfbdevhw.so
(II) Module fbdevhw: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 0.0.2
ABI class: X.Org Video Driver, version 5.0
(EE) open /dev/fb0: No such file or directory
(II) resource ranges after probing:
[0] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[1] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[2] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[3] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[4] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[5] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[6] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[7] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[8] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[9] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[10] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[11] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[12] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[13] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[14] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[15] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[16] 0 0 0x000a0000 - 0x000affff (0x10000) MS[B]
[17] 0 0 0x000b0000 - 0x000b7fff (0x8000) MS[B]
[18] 0 0 0x000b8000 - 0x000bffff (0x8000) MS[B]
[19] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[20] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[21] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[22] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[23] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[24] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[25] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[26] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[27] 0 0 0x000003b0 - 0x000003bb (0xc) IS[B]
[28] 0 0 0x000003c0 - 0x000003df (0x20) IS[B]
(II) Setting vga for screen 0.
(II) RADEON(0): Built from git commit 7968e1fb89f6b59d1654df48249bf4b81990c008
(II) RADEON(0): TOTO SAYS 00000000fdde0000
(II) RADEON(0): MMIO registers at 0x00000000fdde0000: size 64KB
(II) RADEON(0): PCI bus 2 card 0 func 0
(II) RADEON(0): Creating default Display subsection in Screen section
"Builtin Default ati Screen 0" for depth/fbbpp 24/32
(==) RADEON(0): Depth 24, (--) framebuffer bpp 32
(II) RADEON(0): Pixel depth = 24 bits stored in 4 bytes (32 bpp pixmaps)
(==) RADEON(0): Default visual is TrueColor
(II) Loading sub module "vgahw"
(II) LoadModule: "vgahw"
(II) Loading /usr/lib/xorg/modules//libvgahw.so
(II) Module vgahw: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 0.1.0
ABI class: X.Org Video Driver, version 5.0
(II) RADEON(0): vgaHWGetIOBase: hwp->IOBase is 0x03d0, hwp->PIOOffset is 0x0000
(==) RADEON(0): RGB weight 888
(II) RADEON(0): Using 8 bits per RGB (8 bit DAC)
(--) RADEON(0): Chipset: "ATI Radeon HD 2400 Pro" (ChipID = 0x94c3)
(--) RADEON(0): Linear framebuffer at 0x00000000e0000000
(II) RADEON(0): PCIE card detected
(II) Loading sub module "int10"
(II) LoadModule: "int10"
(II) Loading /usr/lib/xorg/modules//libint10.so
(II) Module int10: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.0.0
ABI class: X.Org Video Driver, version 5.0
(II) RADEON(0): initializing int10
(II) RADEON(0): Primary V_BIOS segment is: 0xc000
(II) RADEON(0): ATOM BIOS detected
(II) RADEON(0): ATOM BIOS Rom:
SubsystemVendorID: 0x0000 SubsystemID: 0x0000
IOBaseAddress: 0xbc00
Filename: 24P4060H.67P
BIOS Bootup Message:

ATI RADEON HD2400 SERIES


(II) RADEON(0): Framebuffer space used by Firmware (kb): 20
(II) RADEON(0): Start of VRAM area used by Firmware: 0xfffb000
(II) RADEON(0): AtomBIOS requests 20kB of VRAM scratch space
(II) RADEON(0): AtomBIOS VRAM scratch base: 0xfffb000
(II) RADEON(0): Cannot get VRAM scratch space. Allocating in main memory instead
(II) RADEON(0): Default Engine Clock: 600000
(II) RADEON(0): Default Memory Clock: 400000
(II) RADEON(0): Maximum Pixel ClockPLL Frequency Output: 1200000
(II) RADEON(0): Minimum Pixel ClockPLL Frequency Output: 0
(II) RADEON(0): Maximum Pixel ClockPLL Frequency Input: 13500
(II) RADEON(0): Minimum Pixel ClockPLL Frequency Input: 1000
(II) RADEON(0): Maximum Pixel Clock: 400000
(II) RADEON(0): Reference Clock: 27000
drmOpenDevice: node name is /dev/dri/card0
drmOpenByBusid: Searching for BusID pci:0000:02:00.0
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 10, (OK)
drmOpenByBusid: drmOpenMinor returns 10
drmOpenByBusid: drmGetBusid reports pci:0000:02:00.0
(II) RADEON(0): [dri] Found DRI library version 1.3.0 and kernel module version 1.31.0
(==) RADEON(0): Page Flipping disabled on r5xx and newer chips.

(II) RADEON(0): Will try to use DMA for Xv image transfers
(II) RADEON(0): Detected total video RAM=262144K, accessible=262144K (PCI BAR=262144K)
(--) RADEON(0): Mapped VideoRAM: 262144 kByte (64 bit DDR SDRAM)
(II) RADEON(0): Color tiling disabled
(II) Loading sub module "ddc"
(II) LoadModule: "ddc"
(II) Module "ddc" already built-in
(II) Loading sub module "i2c"
(II) LoadModule: "i2c"
(II) Module "i2c" already built-in
(II) RADEON(0): ref_freq: 2700, min_out_pll: 64800, max_out_pll: 120000, min_in_pll: 100, max_in_pll: 1350, xclk: 40000, sclk: 600.000000, mclk: 400.000000
(II) RADEON(0): PLL parameters: rf=2700 rd=12 min=64800 max=120000; xclk=40000
(II) RADEON(0): Output DVI-1 has no monitor section
(II) RADEON(0): I2C bus "DVI-1" initialized.
(II) RADEON(0): Output DVI-0 has no monitor section
(II) RADEON(0): I2C bus "DVI-0" initialized.
(II) RADEON(0): Port0:
XRANDR name: DVI-1
Connector: DVI-I
CRT2: INTERNAL_KLDSCP_DAC2
DFP1: INTERNAL_KLDSCP_TMDS1
DDC reg: 0x7e50
(II) RADEON(0): Port1:
XRANDR name: DVI-0
Connector: DVI-I
CRT1: INTERNAL_KLDSCP_DAC1
DFP2: INTERNAL_LVTM1
DDC reg: 0x7e40
(II) RADEON(0): I2C device "DVI-1:E-EDID segment register" registered at address 0x60.
(II) RADEON(0): I2C device "DVI-1:ddc2" registered at address 0xA0.
(II) RADEON(0): EDID vendor "___", prod id 2013
(II) RADEON(0): Printing DDC gathered Modelines:
(II) RADEON(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(0): Modeline "800x600"x0.0 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz)
(II) RADEON(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(0): Modeline "640x480"x0.0 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz)
(II) RADEON(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(0): Modeline "800x600"x0.0 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz)
(II) RADEON(0): Output: DVI-1, Detected Monitor Type: 1
(II) RADEON(0): EDID data from the display on output: DVI-1 ----------------------
(II) RADEON(0): Manufacturer: ___ Model: 7dd Serial#: 1
(II) RADEON(0): Year: 2004 Week: 1
(II) RADEON(0): EDID Version: 1.2
(II) RADEON(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V
(II) RADEON(0): Signal levels configurable
(II) RADEON(0): Sync: Separate
(II) RADEON(0): Max Image Size [cm]: horiz.: 30 vert.: 23
(II) RADEON(0): Gamma: 1.00
(II) RADEON(0): DPMS capabilities: StandBy Suspend Off; RGB/Color Display
(II) RADEON(0): redX: 0.604 redY: 0.344 greenX: 0.322 greenY: 0.545
(II) RADEON(0): blueX: 0.156 blueY: 0.117 whiteX: 0.312 whiteY: 0.329
(II) RADEON(0): Supported established timings:
(II) RADEON(0): 720x400@70Hz
(II) RADEON(0): 640x480@60Hz
(II) RADEON(0): 640x480@72Hz
(II) RADEON(0): 640x480@75Hz
(II) RADEON(0): 800x600@56Hz
(II) RADEON(0): 800x600@60Hz
(II) RADEON(0): 800x600@72Hz
(II) RADEON(0): 800x600@75Hz
(II) RADEON(0): 1024x768@60Hz
(II) RADEON(0): 1024x768@70Hz
(II) RADEON(0): 1024x768@75Hz
(II) RADEON(0): Manufacturer's mask: 0
(II) RADEON(0): Monitor name:
(II) RADEON(0): EDID (in hex):
(II) RADEON(0): 00ffffffffffff007fffdd0701000000
(II) RADEON(0): 010e0102781e1700e88a019a58528b28
(II) RADEON(0): 1e5054afce0001010101010101010101
(II) RADEON(0): 010101010101000000fc000a20202020
(II) RADEON(0): 20202020202020200000000000000000
(II) RADEON(0): 00000000000000000000000000000000
(II) RADEON(0): 00000000000000000000000000000000
(II) RADEON(0): 000000000000000000000000000000a5
finished output detect: 0
(II) RADEON(0): I2C device "DVI-0:E-EDID segment register" registered at address 0x60.
(II) RADEON(0): I2C device "DVI-0:ddc2" registered at address 0xA0.
Dac detection success
(II) RADEON(0): Output: DVI-0, Detected Monitor Type: 0
Unhandled monitor type 0
finished output detect: 1
finished all detect
before xf86InitialConfiguration
(II) RADEON(0): EDID for output DVI-1
(II) RADEON(0): Manufacturer: ___ Model: 7dd Serial#: 1
(II) RADEON(0): Year: 2004 Week: 1
(II) RADEON(0): EDID Version: 1.2
(II) RADEON(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V
(II) RADEON(0): Signal levels configurable
(II) RADEON(0): Sync: Separate
(II) RADEON(0): Max Image Size [cm]: horiz.: 30 vert.: 23
(II) RADEON(0): Gamma: 1.00
(II) RADEON(0): DPMS capabilities: StandBy Suspend Off; RGB/Color Display
(II) RADEON(0): redX: 0.604 redY: 0.344 greenX: 0.322 greenY: 0.545
(II) RADEON(0): blueX: 0.156 blueY: 0.117 whiteX: 0.312 whiteY: 0.329
(II) RADEON(0): Supported established timings:
(II) RADEON(0): 720x400@70Hz
(II) RADEON(0): 640x480@60Hz
(II) RADEON(0): 640x480@72Hz
(II) RADEON(0): 640x480@75Hz
(II) RADEON(0): 800x600@56Hz
(II) RADEON(0): 800x600@60Hz
(II) RADEON(0): 800x600@72Hz
(II) RADEON(0): 800x600@75Hz
(II) RADEON(0): 1024x768@60Hz
(II) RADEON(0): 1024x768@70Hz
(II) RADEON(0): 1024x768@75Hz
(II) RADEON(0): Manufacturer's mask: 0
(II) RADEON(0): Monitor name:
(II) RADEON(0): EDID (in hex):
(II) RADEON(0): 00ffffffffffff007fffdd0701000000
(II) RADEON(0): 010e0102781e1700e88a019a58528b28
(II) RADEON(0): 1e5054afce0001010101010101010101
(II) RADEON(0): 010101010101000000fc000a20202020
(II) RADEON(0): 20202020202020200000000000000000
(II) RADEON(0): 00000000000000000000000000000000
(II) RADEON(0): 00000000000000000000000000000000
(II) RADEON(0): 000000000000000000000000000000a5
(II) RADEON(0): EDID vendor "___", prod id 2013
(II) RADEON(0): Printing DDC gathered Modelines:
(II) RADEON(0): Modeline "800x600"x0.0 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(0): Modeline "800x600"x0.0 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz)
(II) RADEON(0): Modeline "640x480"x0.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(0): Modeline "640x480"x0.0 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz)
(II) RADEON(0): Modeline "640x480"x0.0 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(0): Modeline "720x400"x0.0 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz)
(II) RADEON(0): Modeline "1024x768"x0.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(0): Modeline "800x600"x0.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(0): Modeline "800x600"x0.0 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz)
(II) RADEON(0): Output: DVI-1, Detected Monitor Type: 1
(II) RADEON(0): EDID data from the display on output: DVI-1 ----------------------
(II) RADEON(0): Manufacturer: ___ Model: 7dd Serial#: 1
(II) RADEON(0): Year: 2004 Week: 1
(II) RADEON(0): EDID Version: 1.2
(II) RADEON(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V
(II) RADEON(0): Signal levels configurable
(II) RADEON(0): Sync: Separate
(II) RADEON(0): Max Image Size [cm]: horiz.: 30 vert.: 23
(II) RADEON(0): Gamma: 1.00
(II) RADEON(0): DPMS capabilities: StandBy Suspend Off; RGB/Color Display
(II) RADEON(0): redX: 0.604 redY: 0.344 greenX: 0.322 greenY: 0.545
(II) RADEON(0): blueX: 0.156 blueY: 0.117 whiteX: 0.312 whiteY: 0.329
(II) RADEON(0): Supported established timings:
(II) RADEON(0): 720x400@70Hz
(II) RADEON(0): 640x480@60Hz
(II) RADEON(0): 640x480@72Hz
(II) RADEON(0): 640x480@75Hz
(II) RADEON(0): 800x600@56Hz
(II) RADEON(0): 800x600@60Hz
(II) RADEON(0): 800x600@72Hz
(II) RADEON(0): 800x600@75Hz
(II) RADEON(0): 1024x768@60Hz
(II) RADEON(0): 1024x768@70Hz
(II) RADEON(0): 1024x768@75Hz
(II) RADEON(0): Manufacturer's mask: 0
(II) RADEON(0): Monitor name:
(II) RADEON(0): EDID (in hex):
(II) RADEON(0): 00ffffffffffff007fffdd0701000000
(II) RADEON(0): 010e0102781e1700e88a019a58528b28
(II) RADEON(0): 1e5054afce0001010101010101010101
(II) RADEON(0): 010101010101000000fc000a20202020
(II) RADEON(0): 20202020202020200000000000000000
(II) RADEON(0): 00000000000000000000000000000000
(II) RADEON(0): 00000000000000000000000000000000
(II) RADEON(0): 000000000000000000000000000000a5
(II) RADEON(0): EDID vendor "___", prod id 2013
(II) RADEON(0): Printing probed modes for output DVI-1
(II) RADEON(0): Modeline "1024x768"x75.0 78.75 1024 1040 1136 1312 768 769 772 800 +hsync +vsync (60.0 kHz)
(II) RADEON(0): Modeline "1024x768"x70.1 75.00 1024 1048 1184 1328 768 771 777 806 -hsync -vsync (56.5 kHz)
(II) RADEON(0): Modeline "1024x768"x60.0 65.00 1024 1048 1184 1344 768 771 777 806 -hsync -vsync (48.4 kHz)
(II) RADEON(0): Modeline "800x600"x72.2 50.00 800 856 976 1040 600 637 643 666 +hsync +vsync (48.1 kHz)
(II) RADEON(0): Modeline "800x600"x75.0 49.50 800 816 896 1056 600 601 604 625 +hsync +vsync (46.9 kHz)
(II) RADEON(0): Modeline "800x600"x60.3 40.00 800 840 968 1056 600 601 605 628 +hsync +vsync (37.9 kHz)
(II) RADEON(0): Modeline "800x600"x56.2 36.00 800 824 896 1024 600 601 603 625 +hsync +vsync (35.2 kHz)
(II) RADEON(0): Modeline "640x480"x75.0 31.50 640 656 720 840 480 481 484 500 -hsync -vsync (37.5 kHz)
(II) RADEON(0): Modeline "640x480"x72.8 31.50 640 664 704 832 480 489 492 520 -hsync -vsync (37.9 kHz)
(II) RADEON(0): Modeline "640x480"x59.9 25.18 640 656 752 800 480 490 492 525 -hsync -vsync (31.5 kHz)
(II) RADEON(0): Modeline "720x400"x70.1 28.32 720 738 846 900 400 412 414 449 -hsync +vsync (31.5 kHz)
Dac detection success
(II) RADEON(0): Output: DVI-0, Detected Monitor Type: 0
Unhandled monitor type 0
(II) RADEON(0): EDID for output DVI-0
(II) RADEON(0): Output DVI-1 connected
(II) RADEON(0): Output DVI-0 disconnected
(II) RADEON(0): Using exact sizes for initial modes
(II) RADEON(0): Output DVI-1 using initial mode 1024x768
(**) RADEON(0): Display dimensions: (300, 230) mm
(**) RADEON(0): DPI set to (86, 113)
(II) Loading sub module "fb"
(II) LoadModule: "fb"
(II) Loading /usr/lib/xorg/modules//libfb.so
(II) Module fb: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 1.0.0
ABI class: X.Org ANSI C Emulation, version 0.4
(==) RADEON(0): Using gamma correction (1.0, 1.0, 1.0)
(II) Loading sub module "ramdac"
(II) LoadModule: "ramdac"
(II) Module "ramdac" already built-in
(==) RADEON(0): Will attempt to use R6xx/R7xx EXA support if DRI is enabled.
(II) Loading sub module "exa"
(II) LoadModule: "exa"
(II) Loading /usr/lib/xorg/modules//libexa.so
(II) Module exa: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 2.4.0
ABI class: X.Org Video Driver, version 5.0
(!!) RADEON(0): For information on using the multimedia capabilities
of this adapter, please see http://gatos.sf.net.
(!!) RADEON(0): MergedFB support has been removed and replaced with xrandr 1.2 support
(II) UnloadModule: "vesa"
(II) Unloading /usr/lib/xorg/modules/drivers//vesa_drv.so
(II) UnloadModule: "fbdev"
(II) Unloading /usr/lib/xorg/modules/drivers//fbdev_drv.so
(II) UnloadModule: "fbdevhw"
(II) Unloading /usr/lib/xorg/modules/linux//libfbdevhw.so
(--) Depth 24 pixmap format is 32 bpp
(II) do I need RAC? No, I don't.
(II) resource ranges after preInit:
[0] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[1] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[2] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[3] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[4] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[5] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[6] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[7] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[8] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[9] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[10] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[11] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[12] -1 0 0xffffffff - 0xffffffff (0x1) MX[B]
[13] -1 0 0x000f0000 - 0x000fffff (0x10000) MX[B]
[14] -1 0 0x000c0000 - 0x000effff (0x30000) MX[B]
[15] -1 0 0x00000000 - 0x0009ffff (0xa0000) MX[B]
[16] 0 0 0x000a0000 - 0x000affff (0x10000) MS[B]
[17] 0 0 0x000b0000 - 0x000b7fff (0x8000) MS[B]
[18] 0 0 0x000b8000 - 0x000bffff (0x8000) MS[B]
[19] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[20] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[21] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[22] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[23] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[24] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[25] -1 0 0x0000ffff - 0x0000ffff (0x1) IX[B]
[26] -1 0 0x00000000 - 0x00000000 (0x1) IX[B]
[27] 0 0 0x000003b0 - 0x000003bb (0xc) IS[B]
[28] 0 0 0x000003c0 - 0x000003df (0x20) IS[B]
(II) RADEON(0): RADEONScreenInit e0000000 0 0
Output CRT2 disable success
Blank CRTC 0 success
Disable CRTC 0 success
Blank CRTC 1 success
Disable CRTC 1 success
(II) RADEON(0): Dynamic Power Management Disabled
(==) RADEON(0): Using 24 bit depth buffer
mc fb loc is 00ef00e0
(II) RADEON(0): RADEONInitMemoryMap() :
(II) RADEON(0): mem_size : 0x10000000
(II) RADEON(0): MC_FB_LOCATION : 0x00ef00e0
(II) RADEON(0): MC_AGP_LOCATION : 0x003f0000
(II) RADEON(0): Depth moves disabled by default
(II) RADEON(0): Allocating from a screen of 262080 kb
(II) RADEON(0): Will use 32 kb for hardware cursor 0 at offset 0x00400000
(II) RADEON(0): Will use 32 kb for hardware cursor 1 at offset 0x00404000
(II) RADEON(0): Will use 4096 kb for front buffer at offset 0x00000000
(II) RADEON(0): Will use 64 kb for PCI GART at offset 0x0fff0000
(II) RADEON(0): Will use 4096 kb for back buffer at offset 0x00408000
(II) RADEON(0): Will use 4096 kb for depth buffer at offset 0x00808000
(II) RADEON(0): Will use 123904 kb for textures at offset 0x00c08000
(II) RADEON(0): Will use 125856 kb for X Server offscreen at offset 0x08508000
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 10, (OK)
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 10, (OK)
drmOpenByBusid: Searching for BusID pci:0000:02:00.0
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 10, (OK)
drmOpenByBusid: drmOpenMinor returns 10
drmOpenByBusid: drmGetBusid reports pci:0000:02:00.0
(II) [drm] DRM interface version 1.3
(II) [drm] DRM open master succeeded.
(II) RADEON(0): [drm] Using the DRM lock SAREA also for drawables.
(II) RADEON(0): [drm] framebuffer handle = 0xe0000000
(II) RADEON(0): [drm] added 1 reserved context for kernel
(II) RADEON(0): X context handle = 0x1
(II) RADEON(0): [drm] installed DRM signal handler
(II) RADEON(0): [pci] 32768 kB allocated with handle 0xf8543000
(II) RADEON(0): [pci] ring handle = 0xf8543000
(II) RADEON(0): [pci] Ring mapped at 0xb705d000
(II) RADEON(0): [pci] Ring contents 0x00000000
(II) RADEON(0): [pci] ring read ptr handle = 0xf8644000
(II) RADEON(0): [pci] Ring read ptr mapped at 0xb72a5000
(II) RADEON(0): [pci] Ring read ptr contents 0x00000000
(II) RADEON(0): [pci] vertex/indirect buffers handle = 0xf8645000
(II) RADEON(0): [pci] Vertex/indirect buffers mapped at 0xa6dbc000
(II) RADEON(0): [pci] Vertex/indirect buffers contents 0x00000000
(II) RADEON(0): [pci] GART texture map handle = 0xf8845000
(II) RADEON(0): [pci] GART Texture map mapped at 0xa513c000
(II) RADEON(0): [drm] register handle = 0x2fbbc000
(II) RADEON(0): [dri] Visual configs initialized
(II) RADEON(0): RADEONRestoreMemMapRegisters() :
(II) RADEON(0): MC_FB_LOCATION : 0x00ef00e0 0x00ef00e0
(II) RADEON(0): MC_AGP_LOCATION : 0x003f0000
(==) RADEON(0): Backing store disabled
(II) RADEON(0): [DRI] installation complete
(II) RADEON(0): [drm] Added 32 65536 byte vertex/indirect buffers
(II) RADEON(0): [drm] Mapped 32 vertex/indirect buffers
(II) RADEON(0): [drm] dma control initialized, using IRQ 16
(II) RADEON(0): [drm] Initialized kernel GART heap manager, 29884416
(WW) RADEON(0): DRI init changed memory map, adjusting ...
(WW) RADEON(0): MC_FB_LOCATION was: 0x00ef00e0 is: 0x00ef00e0
(WW) RADEON(0): MC_AGP_LOCATION was: 0x003f0000 is: 0x00030000
(II) RADEON(0): RADEONRestoreMemMapRegisters() :
(II) RADEON(0): MC_FB_LOCATION : 0x00ef00e0 0x00ef00e0
(II) RADEON(0): MC_AGP_LOCATION : 0x00030000
(II) RADEON(0): Direct rendering enabled
(II) RADEON(0): Setting EXA maxPitchBytes
(II) EXA(0): Offscreen pixmap area of 128876544 bytes
(II) EXA(0): Driver registered support for the following operations:
(II) Solid
(II) Copy
(II) Composite (RENDER acceleration)
(II) UploadToScreen
(II) DownloadFromScreen
(II) RADEON(0): Acceleration enabled
(II) RADEON(0): DPMS enabled
(==) RADEON(0): Silken mouse enabled
(II) RADEON(0): Set up textured video
Output CRT2 disable success
Blank CRTC 0 success
Disable CRTC 0 success
Blank CRTC 1 success
Disable CRTC 1 success
Output CRT2 disable success
Blank CRTC 0 success
Disable CRTC 0 success
Mode 1024x768 - 1312 800 5
(II) RADEON(0): RADEONRestoreMemMapRegisters() :
(II) RADEON(0): MC_FB_LOCATION : 0x00ef00e0 0x00ef00e0
(II) RADEON(0): MC_AGP_LOCATION : 0x00030000
freq: 78750000
best_freq: 78750000
best_feedback_div: 70
best_frac_feedback_div: 0
best_ref_div: 2
best_post_div: 12
(II) RADEON(0): crtc(0) Clock: mode 78750, PLL 78750
(II) RADEON(0): crtc(0) PLL : refdiv 2, fbdiv 0x46(70), fracfbdiv 0, pdiv 12
Set CRTC 0 PLL success
Set CRTC Timing success
Set CRTC 0 Overscan success
Not using RMX
scaler 0 setup success
Set CRTC 0 Source success
crtc 0 YUV disable setup success
Output DAC2 setup success
Output CRT2 enable success
Enable CRTC 0 success
Unblank CRTC 0 success
Blank CRTC 1 success
Disable CRTC 1 success
(II) RADEON(0): RandR 1.2 enabled, ignore the following RandR disabled message.
Output CRT2 disable success
Blank CRTC 0 success
Disable CRTC 0 success
Mode 1024x768 - 1312 800 5
(II) RADEON(0): RADEONRestoreMemMapRegisters() :
(II) RADEON(0): MC_FB_LOCATION : 0x00ef00e0 0x00ef00e0
(II) RADEON(0): MC_AGP_LOCATION : 0x00030000
freq: 78750000
best_freq: 78750000
best_feedback_div: 70
best_frac_feedback_div: 0
best_ref_div: 2
best_post_div: 12
(II) RADEON(0): crtc(0) Clock: mode 78750, PLL 78750
(II) RADEON(0): crtc(0) PLL : refdiv 2, fbdiv 0x46(70), fracfbdiv 0, pdiv 12
Set CRTC 0 PLL success
Set CRTC Timing success
Set CRTC 0 Overscan success
Not using RMX
scaler 0 setup success
Set CRTC 0 Source success
crtc 0 YUV disable setup success
Output DAC2 setup success
Output CRT2 enable success
Enable CRTC 0 success
Unblank CRTC 0 success
(--) RandR disabled
(II) Setting vga for screen 0.
(II) Initializing built-in extension Generic Event Extension
(II) Initializing built-in extension SHAPE
(II) Initializing built-in extension MIT-SHM
(II) Initializing built-in extension XInputExtension
(II) Initializing built-in extension XTEST
(II) Initializing built-in extension BIG-REQUESTS
(II) Initializing built-in extension SYNC
(II) Initializing built-in extension XKEYBOARD
(II) Initializing built-in extension XC-MISC
(II) Initializing built-in extension SECURITY
(II) Initializing built-in extension XINERAMA
(II) Initializing built-in extension XFIXES
(II) Initializing built-in extension RENDER
(II) Initializing built-in extension RANDR
(II) Initializing built-in extension COMPOSITE
(II) Initializing built-in extension DAMAGE
(II) AIGLX: Screen 0 is not DRI2 capable
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 11, (OK)
drmOpenByBusid: Searching for BusID pci:0000:02:00.0
drmOpenDevice: node name is /dev/dri/card0
drmOpenDevice: open result is 11, (OK)
drmOpenByBusid: drmOpenMinor returns 11
drmOpenByBusid: drmGetBusid reports pci:0000:02:00.0
(EE) AIGLX error: dlopen of /usr/lib/dri/r600_dri.so failed (/usr/lib/dri/r600_dri.so: cannot open shared object file: No such file or directory)
(EE) AIGLX: reverting to software rendering
(II) AIGLX: Loaded and initialized /usr/lib/dri/swrast_dri.so
(II) GLX: Initialized DRISWRAST GL provider for screen 0
(II) RADEON(0): Setting screen physical size to 300 x 230
(II) config/hal: Adding input device ImPS/2 Generic Wheel Mouse
(II) LoadModule: "evdev"
(II) Loading /usr/lib/xorg/modules/input//evdev_drv.so
(II) Module evdev: vendor="X.Org Foundation"
compiled for 1.6.4, module version = 2.2.5
Module class: X.Org XInput Driver
ABI class: X.Org XInput driver, version 4.0
(**) ImPS/2 Generic Wheel Mouse: always reports core events
(**) ImPS/2 Generic Wheel Mouse: Device: "/dev/input/event4"
(II) ImPS/2 Generic Wheel Mouse: Found 3 mouse buttons
(II) ImPS/2 Generic Wheel Mouse: Found x and y relative axes
(II) ImPS/2 Generic Wheel Mouse: Found scroll wheel(s)
(II) ImPS/2 Generic Wheel Mouse: Configuring as mouse
(**) ImPS/2 Generic Wheel Mouse: YAxisMapping: buttons 4 and 5
(**) ImPS/2 Generic Wheel Mouse: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200
(II) XINPUT: Adding extended input device "ImPS/2 Generic Wheel Mouse" (type: MOUSE)
(**) ImPS/2 Generic Wheel Mouse: (accel) keeping acceleration scheme 1
(**) ImPS/2 Generic Wheel Mouse: (accel) filter chain progression: 2.00
(**) ImPS/2 Generic Wheel Mouse: (accel) filter stage 0: 20.00 ms
(**) ImPS/2 Generic Wheel Mouse: (accel) set acceleration profile 0
(II) ImPS/2 Generic Wheel Mouse: initialized for relative axes.
(II) config/hal: Adding input device AT Translated Set 2 keyboard
(**) AT Translated Set 2 keyboard: always reports core events
(**) AT Translated Set 2 keyboard: Device: "/dev/input/event3"
(II) AT Translated Set 2 keyboard: Found keys
(II) AT Translated Set 2 keyboard: Configuring as keyboard
(II) XINPUT: Adding extended input device "AT Translated Set 2 keyboard" (type: KEYBOARD)
(**) Option "xkb_rules" "evdev"
(**) Option "xkb_model" "pc105"
(**) Option "xkb_layout" "us"
(**) Option "xkb_options" "lv3:ralt_switch"
(II) config/hal: Adding input device Power Button
(**) Power Button: always reports core events
(**) Power Button: Device: "/dev/input/event0"
(II) Power Button: Found keys
(II) Power Button: Configuring as keyboard
(II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD)
(**) Option "xkb_rules" "evdev"
(**) Option "xkb_model" "pc105"
(**) Option "xkb_layout" "us"
(**) Option "xkb_options" "lv3:ralt_switch"
(II) config/hal: Adding input device Power Button
(**) Power Button: always reports core events
(**) Power Button: Device: "/dev/input/event1"
(II) Power Button: Found keys
(II) Power Button: Configuring as keyboard
(II) XINPUT: Adding extended input device "Power Button" (type: KEYBOARD)
(**) Option "xkb_rules" "evdev"
(**) Option "xkb_model" "pc105"
(**) Option "xkb_layout" "us"
(**) Option "xkb_options" "lv3:ralt_switch"
(II) config/hal: Adding input device Macintosh mouse button emulation
(**) Macintosh mouse button emulation: always reports core events
(**) Macintosh mouse button emulation: Device: "/dev/input/event2"
(II) Macintosh mouse button emulation: Found 3 mouse buttons
(II) Macintosh mouse button emulation: Found x and y relative axes
(II) Macintosh mouse button emulation: Configuring as mouse
(**) Macintosh mouse button emulation: YAxisMapping: buttons 4 and 5
(**) Macintosh mouse button emulation: EmulateWheelButton: 4, EmulateWheelInertia: 10, EmulateWheelTimeout: 200
(II) XINPUT: Adding extended input device "Macintosh mouse button emulation" (type: MOUSE)
(**) Macintosh mouse button emulation: (accel) keeping acceleration scheme 1
(**) Macintosh mouse button emulation: (accel) filter chain progression: 2.00
(**) Macintosh mouse button emulation: (accel) filter stage 0: 20.00 ms
(**) Macintosh mouse button emulation: (accel) set acceleration profile 0
(II) Macintosh mouse button emulation: initialized for relative axes.
(II) RADEON(0): EDID for output DVI-1
(II) RADEON(0): Manufacturer: ___ Model: 7dd Serial#: 1
(II) RADEON(0): Year: 2004 Week: 1
(II) RADEON(0): EDID Version: 1.2
(II) RADEON(0): Analog Display Input, Input Voltage Level: 0.700/0.700 V
(II) RADEON(0): Signal levels configurable
(II) RADEON(0): Sync: Separate
(II) RADEON(0): Max Image Size [cm]: horiz.: 30 vert.: 23
(II) RADEON(0): Gamma: 1.00
(II) RADEON(0): DPMS capabilities: StandBy Suspend Off; RGB/Color Display
(II) RADEON(0): redX: 0.604 redY: 0.344 greenX: 0.322 greenY: 0.545
(II) RADEON(0): blueX: 0.156 blueY: 0.117 whiteX: 0.312 whiteY: 0.329
(II) RADEON(0): Supported established timings:
(II) RADEON(0): 720x400@70Hz
(II) RADEON(0): 640x480@60Hz
(II) RADEON(0): 640x480@72Hz
(II) RADEON(0): 640x480@75Hz
(II) RADEON(0): 800x600@56Hz
(II) RADEON(0): 800x600@60Hz
(II) RADEON(0): 800x600@72Hz
(II) RADEON(0): 800x600@75Hz
(II) RADEON(0): 1024x768@60Hz
(II) RADEON(0): 1024x768@70Hz
(II) RADEON(0): 1024x768@75Hz
(II) RADEON(0): Manufacturer's mask: 0
(II) RADEON(0): Monitor name:
