关于samba共享ntfs格式盘符和双网卡聚合问题

[onion]

最近想在linuxmint 17 xfce4环境下组一台NAS机。
有2T盘一个ntfs格式，直接插到了机上，通过samba作局域网共享

用win可以看到，但不能进入，权限问题
改fstab

还是不成功
求助

还有板载双网卡

02 和03。现在只有02显示为eth0能上网，03不行
要设置链聚合，请各大大指教

[photor]

同问

[onion]

up up

[poloshiao]

最近想在linuxmint 17 xfce4环境下组一台NAS机。
有2T盘一个ntfs格式，直接插到了机上，通过samba作局域网共享

把 NAS 插著開機 登入桌面
把下面指令 複製 貼進終端機 執行
1. sudo fdisk -l
2. sudo lspci -knn
把結果直接複製貼上來

補充
終端機指令 及 回應
直接 選取/複製 貼上來
不必擷圖
方便回覆時直接引用

[onion]

最近想在linuxmint 17 xfce4环境下组一台NAS机。
有2T盘一个ntfs格式，直接插到了机上，通过samba作局域网共享

把 NAS 插著開機 登入桌面
把下面指令 複製 貼進終端機 執行
1. sudo fdisk -l
2. sudo lspci -knn
把結果直接複製貼上來

補充
終端機指令 及 回應
直接 選取/複製 貼上來
不必擷圖
方便回覆時直接引用

tenk@tenk-NAS ~ $ sudo fdisk -l
[sudo] password for tenk:

Disk /dev/sda: 2000.4 GB, 2000398934016 bytes
255 heads, 63 sectors/track, 243201 cylinders, total 3907029168 sectors
Units = 扇区 of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x0005d088

设备 启动 起点 终点 块数 Id 系统
/dev/sda1 16065 3889288304 1944636120 7 HPFS/NTFS/exFAT
/dev/sda2 3889289214 3907028991 8869889 5 扩展
/dev/sda5 3889289216 3907028991 8869888 b W95 FAT32

Disk /dev/sdb: 128.0 GB, 128035676160 bytes
255 heads, 63 sectors/track, 15566 cylinders, total 250069680 sectors
Units = 扇区 of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk identifier: 0x7bd66ff7

设备 启动 起点 终点 块数 Id 系统
/dev/sdb1 * 2048 195407 96680 83 Linux
/dev/sdb2 196606 250068991 124936193 5 扩展
/dev/sdb5 196608 100194303 49998848 83 Linux
/dev/sdb6 100196352 102195199 999424 83 Linux
/dev/sdb7 102197248 110194687 3998720 82 Linux 交换 / Solaris
/dev/sdb8 110196736 130195455 9999360 83 Linux
/dev/sdb9 130197504 250068991 59935744 83 Linux

tenk@tenk-NAS ~ $ sudo lspci -knn
00:00.0 Host bridge [0600]: Intel Corporation 3rd Gen Core processor DRAM Controller [8086:0154] (rev 09)
Subsystem: Intel Corporation Device [8086:2010]
00:02.0 VGA compatible controller [0300]: Intel Corporation 3rd Gen Core processor Graphics Controller [8086:0156] (rev 09)
Subsystem: Intel Corporation Device [8086:2211]
Kernel driver in use: i915
00:14.0 USB controller [0c03]: Intel Corporation 7 Series/C210 Series Chipset Family USB xHCI Host Controller [8086:1e31] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
Kernel driver in use: xhci_hcd
00:16.0 Communication controller [0780]: Intel Corporation 7 Series/C210 Series Chipset Family MEI Controller #1 [8086:1e3a] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
Kernel driver in use: mei_me
00:16.3 Serial controller [0700]: Intel Corporation 7 Series/C210 Series Chipset Family KT Controller [8086:1e3d] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
Kernel driver in use: serial
00:1a.0 USB controller [0c03]: Intel Corporation 7 Series/C210 Series Chipset Family USB Enhanced Host Controller #2 [8086:1e2d] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
Kernel driver in use: ehci-pci
00:1b.0 Audio device [0403]: Intel Corporation 7 Series/C210 Series Chipset Family High Definition Audio Controller [8086:1e20] (rev 04)
Kernel driver in use: snd_hda_intel
00:1c.0 PCI bridge [0604]: Intel Corporation 7 Series/C210 Series Chipset Family PCI Express Root Port 1 [8086:1e10] (rev c4)
Kernel driver in use: pcieport
00:1c.2 PCI bridge [0604]: Intel Corporation 7 Series/C210 Series Chipset Family PCI Express Root Port 3 [8086:1e14] (rev c4)
Kernel driver in use: pcieport
00:1c.3 PCI bridge [0604]: Intel Corporation 7 Series/C210 Series Chipset Family PCI Express Root Port 4 [8086:1e16] (rev c4)
Kernel driver in use: pcieport
00:1d.0 USB controller [0c03]: Intel Corporation 7 Series/C210 Series Chipset Family USB Enhanced Host Controller #1 [8086:1e26] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
Kernel driver in use: ehci-pci
00:1f.0 ISA bridge [0601]: Intel Corporation HM77 Express Chipset LPC Controller [8086:1e57] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
Kernel driver in use: lpc_ich
00:1f.2 SATA controller [0106]: Intel Corporation 7 Series Chipset Family 6-port SATA Controller [AHCI mode] [8086:1e03] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
Kernel driver in use: ahci
00:1f.3 SMBus [0c05]: Intel Corporation 7 Series/C210 Series Chipset Family SMBus Controller [8086:1e22] (rev 04)
Subsystem: Intel Corporation Device [8086:7270]
02:00.0 Ethernet controller [0200]: Intel Corporation 82574L Gigabit Network Connection [8086:10d3]
Subsystem: Intel Corporation Device [8086:0000]
Kernel driver in use: e1000e
03:00.0 Ethernet controller [0200]: Intel Corporation 82574L Gigabit Network Connection [8086:10d3]
Subsystem: Intel Corporation Device [8086:0000]


感谢

[poloshiao]

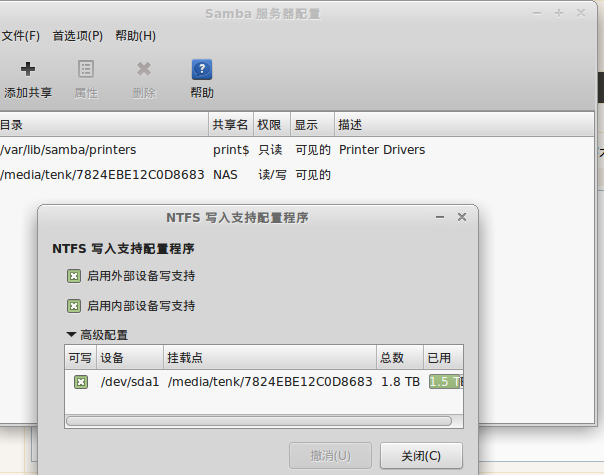

/media/tenk/7824EBE12C0D8683
NAS
/dev/sda1

sudo fdisk -l
/dev/sda1 16065 3889288304 1944636120 7 HPFS/NTFS/exFAT

是這個分割區嗎

如果是 /dev/sda1
為何你掛載在 /media
/media 一般是用來掛載 移動裝置 例如 USB CD/DVD 等等
存取權限 有許多額外規範

[onion]

/media/tenk/7824EBE12C0D8683
NAS
/dev/sda1

sudo fdisk -l
/dev/sda1 16065 3889288304 1944636120 7 HPFS/NTFS/exFAT

是這個分割區嗎

如果是 /dev/sda1
為何你掛載在 /media
/media 一般是用來掛載 移動裝置 例如 USB CD/DVD 等等
存取權限 有許多額外規範

这个是系统安装好后自动挂载的。就是/dev/sda1
如何修改比较好呢？

[poloshiao]

这个是系统安装好后自动挂载的。就是/dev/sda1

硬盤分割區 一般在 /etc/fstab 掛載
只有在 /etc/fstab 沒有掛載的分割區
才會在 /media/username/uuid 預留一個掛載點
你點擊時 才正式掛載

在 /etc/fstab 掛載
參閱
https://help.ubuntu.com/community/Fstab

在 /media 掛載
參閱
https://help.ubuntu.com/community/Autom ... ser_Mounts

掛載 windows 的分割區 格式 額外參閱
https://help.ubuntu.com/community/Mount ... Partitions

你要作為 nas 的 file server 用途
最好在 /etc/fstab 掛載
