ralink 3072网卡问题

fenzao · #1

我参见：viewtopic.php?p=2613184 这里面的驱动型号略有出入。

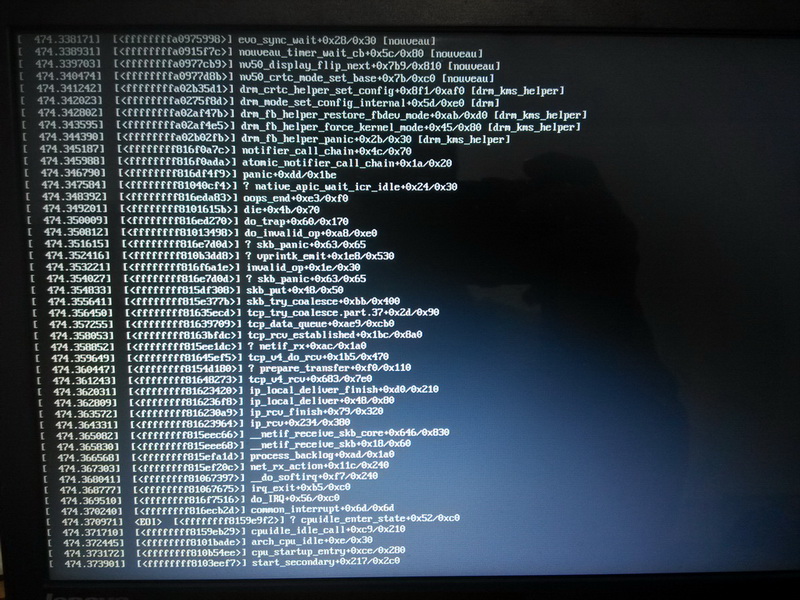

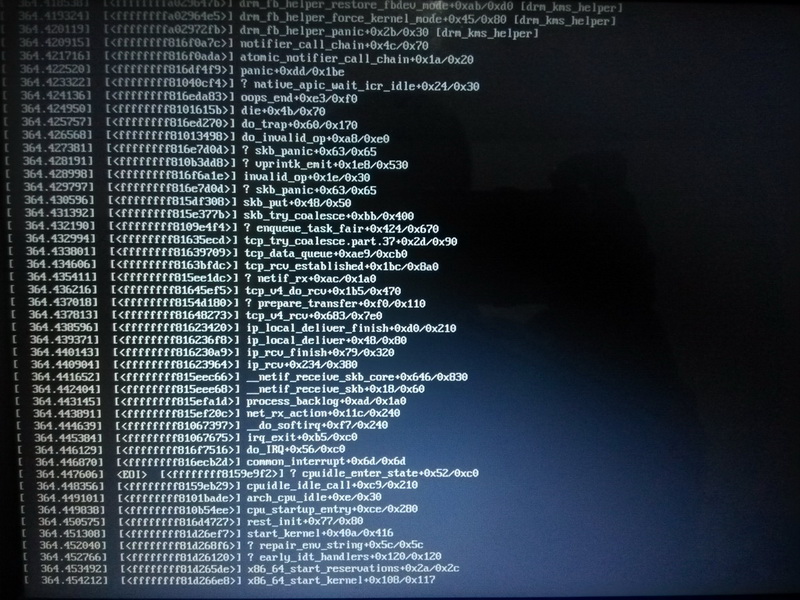

在win7下用3072网卡没有任何问题，但是在ubuntu13.10 x64位下，用2.6.1.3 "RT8070/ RT3070/ RT3370/ RT3572/ RT5370/ RT5372/ RT5572 "做驱动，启动时用rt2800usb支持的话，信号很差，但是不会出现错误，死机等，如果在/etc/modprobe.d/blacklist.conf里屏蔽掉rt2800usb ，自动加载里填上rt5572模块用他做驱动的话，开始的时候信号是好的，但过会连接路由异常慢。各位，在ubuntu下用ranlink的有没有碰到过类似的问题？改怎么调试rt3072？

poloshiao · #2

從終端機
sudo lshw -numeric -class network
把結果直接複製貼上來

fenzao · #3

poloshiao 写了：從終端機
sudo lshw -numeric -class network
把結果直接複製貼上來

$ sudo lshw -numeric -class network
*-network
description: Wireless interface
product: BCM4313 802.11bgn Wireless Network Adapter [14E4:4727]
vendor: Broadcom Corporation [14E4]
physical id: 0
bus info: pci@0000:03:00.0
logical name: eth1
version: 01
serial: 20:68:9d:f2:3a:0e
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress bus_master cap_list ethernet physical wireless
configuration: broadcast=yes driver=wl0 driverversion=6.30.223.141 (r415941) latency=0 multicast=yes wireless=IEEE 802.11abg
resources: irq:17 memory:e4100000-e4103fff
*-network DISABLED
description: Ethernet interface
product: RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10EC:8168]
vendor: Realtek Semiconductor Co., Ltd. [10EC]
physical id: 0
bus info: pci@0000:0c:00.0
logical name: eth0
version: 07
serial: b8:88:e3:e4:0e:0a
size: 10Mbit/s
capacity: 1Gbit/s
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress msix vpd bus_master cap_list ethernet physical tp mii 10bt 10bt-fd 100bt 100bt-fd 1000bt 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=r8169 driverversion=2.3LK-NAPI duplex=full latency=0 link=no multicast=yes port=MII speed=10Mbit/s
resources: irq:43 ioport:2000(size=256) memory:e2804000-e2804fff memory:e2800000-e2803fff
*-network
description: Wireless interface
physical id: 2
logical name: ra0
serial: 00:0d:a3:22:ba:3b
capabilities: ethernet physical wireless
configuration: broadcast=yes driver=RALINK WLAN ip=192.168.10.104 multicast=yes wireless=Ralink STA

fenzao · #4

poloshiao 写了：從終端機
sudo lshw -numeric -class network
把結果直接複製貼上來

:~$ lsmod
Module Size Used by
parport_pc 32701 0
ppdev 17671 0
rfcomm 69070 12
bnep 19564 2
x86_pkg_temp_thermal 14162 0
intel_powerclamp 14705 0
coretemp 13435 0
kvm_intel 138538 0
kvm 431315 1 kvm_intel
crct10dif_pclmul 14289 0
crc32_pclmul 13113 0
ghash_clmulni_intel 13259 0
cryptd 20329 1 ghash_clmulni_intel
uvcvideo 80885 0
videobuf2_vmalloc 13216 1 uvcvideo
videobuf2_memops 13362 1 videobuf2_vmalloc
videobuf2_core 40469 1 uvcvideo
videodev 133390 2 uvcvideo,videobuf2_core
btusb 28267 0
bluetooth 371874 22 bnep,btusb,rfcomm
lib80211_crypt_tkip 17619 0
microcode 23518 0
snd_hda_codec_hdmi 41276 1
snd_hda_codec_conexant 56945 1
wl 4207474 0
nouveau 943295 1
serio_raw 13413 0
lib80211 14352 2 wl,lib80211_crypt_tkip
i915 655752 3
mxm_wmi 13021 1 nouveau
snd_hda_intel 48171 3
rtsx_pci_ms 18151 0
snd_hda_codec 188738 3 snd_hda_codec_hdmi,snd_hda_codec_conexant,snd_hda_intel
cfg80211 479757 1 wl
ttm 83995 1 nouveau
lpc_ich 21080 0
snd_hwdep 13602 1 snd_hda_codec
memstick 16760 1 rtsx_pci_ms
snd_pcm 102033 3 snd_hda_codec_hdmi,snd_hda_codec,snd_hda_intel
snd_page_alloc 18710 2 snd_pcm,snd_hda_intel
drm_kms_helper 52651 2 i915,nouveau
mei_me 18421 0
mei 77692 1 mei_me
drm 296739 7 ttm,i915,drm_kms_helper,nouveau
i2c_algo_bit 13413 2 i915,nouveau
wmi 19070 2 mxm_wmi,nouveau
thinkpad_acpi 80701 0
nvram 14362 1 thinkpad_acpi
snd_seq_midi 13324 0
snd_seq_midi_event 14899 1 snd_seq_midi
snd_rawmidi 30095 1 snd_seq_midi
snd_seq 61560 2 snd_seq_midi_event,snd_seq_midi
snd_seq_device 14497 3 snd_seq,snd_rawmidi,snd_seq_midi
snd_timer 29433 2 snd_pcm,snd_seq
snd 69141 18 snd_hwdep,snd_timer,snd_hda_codec_hdmi,snd_hda_codec_conexant,snd_pcm,snd_seq,snd_rawmidi,snd_hda_codec,snd_hda_intel,thinkpad_acpi,snd_seq_device,snd_seq_midi
soundcore 12680 1 snd
mac_hid 13205 0
video 19318 2 i915,nouveau
rt5572sta 802806 1
lp 17759 0
parport 42299 3 lp,ppdev,parport_pc
hid_generic 12548 0
rtsx_pci_sdmmc 23527 0
usbhid 53014 0
hid 101512 2 hid_generic,usbhid
r8169 67341 0
rtsx_pci 45546 2 rtsx_pci_ms,rtsx_pci_sdmmc
mii 13934 1 r8169

fenzao · #5

poloshiao 写了：從終端機
sudo lshw -numeric -class network
把結果直接複製貼上來

~$ sudo lshw -numeric -class network
[sudo] password for administrator:
*-network
description: Wireless interface
product: BCM4313 802.11bgn Wireless Network Adapter [14E4:4727]
vendor: Broadcom Corporation [14E4]
physical id: 0
bus info: pci@0000:03:00.0
logical name: eth1
version: 01
serial: 20:68:9d:f2:3a:0e
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress bus_master cap_list ethernet physical wireless
configuration: broadcast=yes driver=wl0 driverversion=6.30.223.141 (r415941) latency=0 multicast=yes wireless=IEEE 802.11abg
resources: irq:17 memory:e4100000-e4103fff
*-network DISABLED
description: Ethernet interface
product: RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10EC:8168]
vendor: Realtek Semiconductor Co., Ltd. [10EC]
physical id: 0
bus info: pci@0000:0c:00.0
logical name: eth0
version: 07
serial: b8:88:e3:e4:0e:0a
size: 10Mbit/s
capacity: 1Gbit/s
width: 64 bits
clock: 33MHz
capabilities: pm msi pciexpress msix vpd bus_master cap_list ethernet physical tp mii 10bt 10bt-fd 100bt 100bt-fd 1000bt 1000bt-fd autonegotiation
configuration: autonegotiation=on broadcast=yes driver=r8169 driverversion=2.3LK-NAPI duplex=full latency=0 link=no multicast=yes port=MII speed=10Mbit/s
resources: irq:43 ioport:2000(size=256) memory:e2804000-e2804fff memory:e2800000-e2803fff
*-network
description: Wireless interface
physical id: 2
logical name: ra0
serial: 00:0d:a3:22:ba:3b
capabilities: ethernet physical wireless
configuration: broadcast=yes driver=RALINK WLAN ip=192.168.10.104 multicast=yes wireless=Ralink STA

fenzao · #6

内核错误没有加载rt2800usb 只加载rt5572sta

poloshiao · #7

*-network DISABLED
product: RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10EC:8168]
logical name: eth0
serial: b8:88:e3:e4:0e:0a
configuration: autonegotiation=on broadcast=yes driver=r8169 driverversion=2.3LK-NAP

http://www.pcidatabase.com/vendor_details.php?id=1697
0x8168
Chip Number: RTL8168E/RTL8111F/RTL
LINUX driver for kernel 3.x and 2.6.x and 2.4.x
http://www.realtek.com/downloads/downlo ... RTL8111GUS

ralink 3072

*-network
description: Wireless interface
logical name: ra0
serial: 00:0d:a3:22:ba:3b
configuration: broadcast=yes driver=RALINK WLAN ip=192.168.10.104 multicast=yes wireless=Ralink STA

沒有合適驅動
http://www.pcidatabase.com/vendor_details.php?id=1633
0x1814
Ralink Technology, Corp.
沒有登記 3072
https://usb-ids.gowdy.us/read/UD/148f
Ralink Technology, Corp.
148f
https://usb-ids.gowdy.us/read/UD/148f/3072
RT3072 Wireless Adapter
http://wireless.kernel.org/en/users/Dri ... sb/devices
http://wireless.kernel.org/en/users/Drivers/rt2800usb
所以合適的驅動是 rt2800usb

启动时用rt2800usb支持的话，信号很差，但是不会出现错误，死机等

載入 rt2800usb
從終端機
1. sudo ifconfig -a
2. sudo route -nv
3. sudo dhclient -v
4. sudo iwlist scan
把結果複製貼上來

fenzao · #8

poloshiao 写了：
*-network DISABLED
product: RTL8111/8168/8411 PCI Express Gigabit Ethernet Controller [10EC:8168]
logical name: eth0
serial: b8:88:e3:e4:0e:0a
configuration: autonegotiation=on broadcast=yes driver=r8169 driverversion=2.3LK-NAP
http://www.pcidatabase.com/vendor_details.php?id=1697
0x8168
Chip Number: RTL8168E/RTL8111F/RTL
LINUX driver for kernel 3.x and 2.6.x and 2.4.x
http://www.realtek.com/downloads/downlo ... RTL8111GUS
ralink 3072

*-network
description: Wireless interface
logical name: ra0
serial: 00:0d:a3:22:ba:3b
configuration: broadcast=yes driver=RALINK WLAN ip=192.168.10.104 multicast=yes wireless=Ralink STA
沒有合適驅動
http://www.pcidatabase.com/vendor_details.php?id=1633
0x1814
Ralink Technology, Corp.
沒有登記 3072
https://usb-ids.gowdy.us/read/UD/148f
Ralink Technology, Corp.
148f
https://usb-ids.gowdy.us/read/UD/148f/3072
RT3072 Wireless Adapter
http://wireless.kernel.org/en/users/Dri ... sb/devices
http://wireless.kernel.org/en/users/Drivers/rt2800usb
所以合適的驅動是 rt2800usb
启动时用rt2800usb支持的话，信号很差，但是不会出现错误，死机等
載入 rt2800usb
從終端機
1. sudo ifconfig -a
2. sudo route -nv
3. sudo dhclient -v
4. sudo iwlist scan
把結果複製貼上來

sudo ifconfig -a:

$ sudo ifconfig -a
eth0 Link encap:以太网硬件地址 b8:88:e3:e4:0e:0a
inet6 地址: fe80::ba88:e3ff:fee4:e0a/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 跃点数:1
接收数据包:14265 错误:0 丢弃:8506 过载:0 帧数:0
发送数据包:294 错误:0 丢弃:0 过载:0 载波:0
碰撞:0 发送队列长度:1000
接收字节:1187775 (1.1 MB) 发送字节:39574 (39.5 KB)

eth1 Link encap:以太网硬件地址 20:68:9d:f2:3a:0e
inet6 地址: fe80::2268:9dff:fef2:3a0e/64 Scope:Link
UP BROADCAST MULTICAST MTU:1500 跃点数:1
接收数据包:20 错误:0 丢弃:0 过载:0 帧数:4793
发送数据包:61 错误:0 丢弃:0 过载:0 载波:0
碰撞:0 发送队列长度:1000
接收字节:1910 (1.9 KB) 发送字节:10769 (10.7 KB)
中断:17

lo Link encap:本地环回
inet 地址:127.0.0.1 掩码:255.0.0.0
inet6 地址: ::1/128 Scope:Host
UP LOOPBACK RUNNING MTU:65536 跃点数:1
接收数据包:144 错误:0 丢弃:0 过载:0 帧数:0
发送数据包:144 错误:0 丢弃:0 过载:0 载波:0
碰撞:0 发送队列长度:0
接收字节:7200 (7.2 KB) 发送字节:7200 (7.2 KB)

wlan0 Link encap:以太网硬件地址 00:0d:a3:22:ba:3b
inet 地址:192.168.10.104 广播:192.168.10.255 掩码:255.255.255.0
inet6 地址: fe80::20d:a3ff:fe22:ba3b/64 Scope:Link
UP BROADCAST RUNNING MULTICAST MTU:1500 跃点数:1
接收数据包:32404 错误:0 丢弃:0 过载:0 帧数:0
发送数据包:33733 错误:0 丢弃:0 过载:0 载波:0
碰撞:0 发送队列长度:1000
接收字节:32392016 (32.3 MB) 发送字节:4405476 (4.4 MB)

2. sudo route -nv

内核 IP 路由表
目标网关子网掩码标志跃点引用使用接口
0.0.0.0 192.168.10.1 0.0.0.0 UG 0 0 0 wlan0
192.168.10.0 0.0.0.0 255.255.255.0 U 9 0 0 wlan0

3. sudo dhclient -v

Internet Systems Consortium DHCP Client 4.2.4
Copyright 2004-2012 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/

Listening on LPF/wlan0/00:0d:a3:22:ba:3b
Sending on LPF/wlan0/00:0d:a3:22:ba:3b
Sending on Socket/fallback
DHCPREQUEST of 192.168.10.104 on wlan0 to 255.255.255.255 port 67 (xid=0xaa2f800)
DHCPREQUEST of 192.168.10.104 on wlan0 to 255.255.255.255 port 67 (xid=0xaa2f800)
DHCPACK of 192.168.10.104 from 192.168.10.1
RTNETLINK answers: File exists
bound to 192.168.10.104 -- renewal in 37963 seconds.

4. sudo iwlist scan

eth1 Scan completed :
Cell 01 - Address: 20:DC:E6:61:A6:06
Channel:6
Frequency:2.437 GHz (Channel 6)
Quality=50/70 Signal level=-60 dBm
Encryption key:on
ESSID:"5522"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000435353232
IE: Unknown: 010882848B960C121824
IE: Unknown: 030106
IE: Unknown: 2A0100
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: 32043048606C
IE: Unknown: 2D1A6E1003FF00000000000000000000000000000000000000000000
IE: Unknown: 331A6E1003FF00000000000000000000000000000000000000000000
IE: Unknown: 3D16060D0000000000000000000000000000000000000000
IE: Unknown: 3416060D0000000000000000000000000000000000000000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101030003A4000027A4000042435E0062322F00
IE: Unknown: DD0900037F01010000FF7F
IE: Unknown: DD800050F204104A0001101044000102103B000103104700100000000000001000000020DCE661A6061021000754502D4C494E4B10230009544C2D57523734354E10240003312E3010420003312E301054000800060050F204000110110018576972656C657373204E20526F757465722057523734354E100800020086103C000101
Cell 02 - Address: CC:34:29:17:83:82
Channel:13
Frequency:2.472 GHz (Channel 13)
Quality=38/70 Signal level=-72 dBm
Encryption key:on
ESSID:"FAST_178382"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 9 Mb/s
18 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 12 Mb/s; 24 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000B464153545F313738333832
IE: Unknown: 010882848B961224486C
IE: Unknown: 03010D
IE: Unknown: 2A0104
IE: Unknown: 32040C183060
IE: Unknown: 2D1AEE1117FFFF0000010000000000000000000000000C0000000000
IE: Unknown: 3D160D070600000000000000000000000000000000000000
IE: WPA Version 1
Group Cipher : TKIP
Pairwise Ciphers (2) : TKIP CCMP
Authentication Suites (1) : PSK
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : TKIP
Pairwise Ciphers (2) : TKIP CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
IE: Unknown: 4A0E14000A002C01C800140005001900
IE: Unknown: DD07000C4307000000
IE: Unknown: DD8B0050F204104A0001101044000102103B000103104700102880288028801880A880CC342917838210210004464153541023000646575233313010240003342E301042000C4343333432393137383338321054000800060050F2040001101100163330304D20576972656C657373204E20526F75746572100800020086103C0001011049000600372A000120
Cell 03 - Address: 8C:21:0A:78:6A:BC
Channel:1
Frequency:2.412 GHz (Channel 1)
Quality=27/70 Signal level=-83 dBm
Encryption key:on
ESSID:"DWONG"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000544574F4E47
IE: Unknown: 010882848B960C121824
IE: Unknown: 030101
IE: Unknown: 0706555320010D14
IE: Unknown: 2A0100
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: 32043048606C
IE: Unknown: 2D1A6E1003FF00000000000000000000000000000000000000000000
IE: Unknown: 331A6E1003FF00000000000000000000000000000000000000000000
IE: Unknown: 3D1601051100000000000000000000000000000000000000
IE: Unknown: 341601051100000000000000000000000000000000000000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101030003A4000027A4000042435E0062322F00
IE: Unknown: DD0900037F01010000FF7F
IE: Unknown: DD800050F204104A0001101044000102103B00010310470010000000000000100000008C210A786ABC1021000754502D4C494E4B10230009544C2D57523734304E10240003312E3010420003312E301054000800060050F204000110110018576972656C657373204E20526F757465722057523734304E100800020086103C000101
Cell 04 - Address: C8:3A:35:54:20:A8
Channel:6
Frequency:2.437 GHz (Channel 6)
Quality=37/70 Signal level=-73 dBm
Encryption key:on
ESSID:"qq521"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 00057171353231
IE: Unknown: 010882840B162430486C
IE: Unknown: 030106
IE: Unknown: 2A0100
IE: Unknown: 2F0100
IE: Unknown: 32040C121860
IE: Unknown: 2D1AFE181BFFFF000001000000000000000000000000000000000000
IE: Unknown: 3D16060D0000000000000000000000000000000000000000
IE: Unknown: DD090010180201F02C0000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
Cell 05 - Address: 54:E6:FC:19:B7:F0
Channel:4
Frequency:2.427 GHz (Channel 4)
Quality=30/70 Signal level=-80 dBm
Encryption key:on
ESSID:"TP-LINK_19B7F0"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 11008ms ago
IE: Unknown: 000E54502D4C494E4B5F313942374630
IE: Unknown: 010882848B960C121824
IE: Unknown: 030104
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: 2A0100
IE: Unknown: 32043048606C
IE: Unknown: DD180050F2020101860003A4000027A4000042435E0062322F00
IE: Unknown: DD1E00904C334E111BFF00000000000000000000000000000000000000000000
IE: Unknown: 2D1A4E111BFF00000000000000000000000000000000000000000000
IE: Unknown: DD1A00904C34040D0A00000000000000000000000000000000000000
IE: Unknown: 3D16040D0A00000000000000000000000000000000000000
IE: Unknown: DD0900037F01010000FF7F
IE: Unknown: DD0A00037F04010000004000
IE: Unknown: DD850050F204104A0001101044000102103B000103104700100000000000001000000054E6FC19B7F01021000754502D4C494E4B10230009544C2D57523734304E10240007332E302F342E3010420003312E301054000800060050F204000110110019576972656C65737320526F7574657220544C2D57523734304E100800020086103C000101
Cell 06 - Address: 28:2C:B2:9F:3D:5C
Channel:1
Frequency:2.412 GHz (Channel 1)
Quality=30/70 Signal level=-80 dBm
Encryption key:on
ESSID:"I'm 007"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000749276D20303037
IE: Unknown: 010882848B960C121824
IE: Unknown: 030101
IE: Unknown: 050700010000000000
IE: Unknown: 2A0100
IE: Unknown: 32043048606C
IE: Unknown: 2D1A6E1003FFFF000000000000000000000000000000000000000000
IE: Unknown: 3D1601050200000000000000000000000000000000000000
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
IE: Unknown: DD05000AEB0100
IE: Unknown: DD310050F204104A00011010440001021047001000000000000010000000282CB29F3D5C103C0001011049000600372A000120
Cell 07 - Address: C8:3A:35:4A:30:20
Channel:1
Frequency:2.412 GHz (Channel 1)
Quality=22/70 Signal level=-88 dBm
Encryption key:on
ESSID:"Tenda_4A3020"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 9 Mb/s
18 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 12 Mb/s; 24 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000C54656E64615F344133303230
IE: Unknown: 010882848B961224486C
IE: Unknown: 030101
IE: Unknown: 32040C183060
IE: Unknown: 0706434E20010D14
IE: Unknown: 33082001020304050607
IE: Unknown: 33082105060708090A0B
IE: Unknown: 050400010000
IE: Unknown: 2A0104
IE: Unknown: 2D1A6E1016FF000000010000000000000000000000000C0000000000
IE: Unknown: 3D1601050400000000000000000000000000000000000000
IE: Unknown: 4A0E14000A002C01C800140005001900
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
IE: Unknown: 0B0501001C127A
IE: Unknown: DD07000C4304000000
Cell 08 - Address: 6C:E8:73:9C:3A:DA
Channel:1
Frequency:2.412 GHz (Channel 1)
Quality=28/70 Signal level=-82 dBm
Encryption key:on
ESSID:"xiaojin"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 00077869616F6A696E
IE: Unknown: 010882848B960C121824
IE: Unknown: 030101
IE: Unknown: 050400010000
IE: Unknown: 2A0100
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: 32043048606C
IE: Unknown: 2D1A6E1003FF00000000000000000000000000000000000000000000
IE: Unknown: 3D1601051100000000000000000000000000000000000000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101030003A4000027A4000042435E0062322F00
IE: Unknown: DD0900037F01010000FF7F
IE: Unknown: DD0E0050F204104A0001101044000102
Cell 09 - Address: 1C:BD:B9:F6:41:42
Channel:3
Frequency:2.422 GHz (Channel 3)
Quality=28/70 Signal level=-82 dBm
Encryption key:on
ESSID:"D-Link_DIR-600A"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000F442D4C696E6B5F4449522D36303041
IE: Unknown: 010882848B962430486C
IE: Unknown: 030103
IE: Unknown: 2A0100
IE: Unknown: 2F0100
IE: Unknown: 32040C121860
IE: Unknown: 2D1A6C181BFF00000000000000000000000000000000000000000000
IE: Unknown: 3D1603001300000000000000000000000000000000000000
IE: Unknown: DD090010180204F0010000
IE: Unknown: DD1E00904C336C181BFF00000000000000000000000000000000000000000000
IE: Unknown: DD1A00904C3403001300000000000000000000000000000000000000
Cell 10 - Address: C8:3A:35:04:E0:78
Channel:8
Frequency:2.447 GHz (Channel 8)
Quality=34/70 Signal level=-76 dBm
Encryption key:on
ESSID:"Tenda_04E078"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000C54656E64615F303445303738
IE: Unknown: 010882840B162430486C
IE: Unknown: 030108
IE: Unknown: 2A0100
IE: Unknown: 2F0100
IE: Unknown: 32040C121860
IE: Unknown: 2D1A7E181BFF00000000000000000000000000000000000000000000
IE: Unknown: 3D16080F0400000000000000000000000000000000000000
IE: Unknown: DD090010180205F02C0000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
Cell 11 - Address: C8:3A:35:04:7C:A8
Channel:8
Frequency:2.447 GHz (Channel 8)
Quality=36/70 Signal level=-74 dBm
Encryption key:on
ESSID:"Tenda_047CA8"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=0000000000000000
Extra: Last beacon: 52ms ago
IE: Unknown: 000C54656E64615F303437434138
IE: Unknown: 010882840B162430486C
IE: Unknown: 030108
IE: Unknown: 2A0100
IE: Unknown: 2F0100
IE: Unknown: 32040C121860
IE: Unknown: 2D1A7E181BFF00000000000000000000000000000000000000000000
IE: Unknown: 3D16080F0000000000000000000000000000000000000000
IE: Unknown: DD090010180200F02C0000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00

wlan0 Scan completed :
Cell 01 - Address: 1C:BD:B9:F6:41:42
Channel:3
Frequency:2.422 GHz (Channel 3)
Quality=35/70 Signal level=-75 dBm
Encryption key:on
ESSID:"D-Link_DIR-600A"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=00000046c4228f31
Extra: Last beacon: 1808ms ago
IE: Unknown: 000F442D4C696E6B5F4449522D36303041
IE: Unknown: 010882848B962430486C
IE: Unknown: 030103
IE: Unknown: 2A0100
IE: Unknown: 2F0100
IE: Unknown: 32040C121860
IE: Unknown: 2D1A6C181BFF00000000000000000000000000000000000000000000
IE: Unknown: 3D1603001300000000000000000000000000000000000000
IE: Unknown: DD090010180204F0010000
IE: Unknown: DD1E00904C336C181BFF00000000000000000000000000000000000000000000
IE: Unknown: DD1A00904C3403001300000000000000000000000000000000000000
Cell 02 - Address: A8:57:4E:10:1D:F2
Channel:1
Frequency:2.412 GHz (Channel 1)
Quality=25/70 Signal level=-85 dBm
Encryption key:on
ESSID:"cengwangkechi"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=0000012f7f2a8180
Extra: Last beacon: 4108ms ago
IE: Unknown: 000D63656E6777616E676B65636869
IE: Unknown: 010882848B960C121824
IE: Unknown: 030101
IE: Unknown: 050700010000000000
IE: Unknown: 2A0100
IE: Unknown: 32043048606C
IE: Unknown: 2D1A6E1003FFFF000000000000000000000000000000000000000000
IE: Unknown: 3D1601050200000000000000000000000000000000000000
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
IE: Unknown: DD05000AEB0100
IE: Unknown: DD310050F204104A00011010440001021047001000000000000010000000A8574E101DF2103C0001011049000600372A000120
Cell 03 - Address: 8C:A9:82:22:D7:CB
Channel:1
Frequency:2.412 GHz (Channel 1)
Quality=43/70 Signal level=-67 dBm
Encryption key:on
ESSID:"WIN-HOH7FBQHJSQ-97310"
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 18 Mb/s; 24 Mb/s
36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=01cf3e0128085969
Extra: Last beacon: 4076ms ago
IE: Unknown: 001557494E2D484F4837464251484A53512D3937333130
IE: Unknown: 01088C129824B048606C
IE: Unknown: 030101
IE: Unknown: 050402030000
IE: Unknown: 2A0100
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
IE: Unknown: DD790050F204104A0001101044000102103B000103104700102A50887F36B4244F9B6E017D115B259910210011496E74656C20436F72706F726174696F6E10230014496E74656C2852292043656E7472696E6F285229102400012D104200012D1054000800010050F204000110110005496E74656C10080002008C
IE: Unknown: DD0B0017350101000000000000
Cell 04 - Address: C8:3A:35:54:20:A8
Channel:6
Frequency:2.437 GHz (Channel 6)
Quality=61/70 Signal level=-49 dBm
Encryption key:on
ESSID:"qq521"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=0000000010df329d
Extra: Last beacon: 2548ms ago
IE: Unknown: 00057171353231
IE: Unknown: 010882840B162430486C
IE: Unknown: 030106
IE: Unknown: 2A0100
IE: Unknown: 2F0100
IE: Unknown: 32040C121860
IE: Unknown: 2D1AFE181BFFFF000001000000000000000000000000000000000000
IE: Unknown: 3D16060D0000000000000000000000000000000000000000
IE: Unknown: DD090010180201F02C0000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
Cell 05 - Address: 20:DC:E6:61:A6:06
Channel:6
Frequency:2.437 GHz (Channel 6)
Quality=45/70 Signal level=-65 dBm
Encryption key:on
ESSID:"5522"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=0000004637d2ca23
Extra: Last beacon: 2560ms ago
IE: Unknown: 000435353232
IE: Unknown: 010882848B960C121824
IE: Unknown: 030106
IE: Unknown: 2A0100
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: 32043048606C
IE: Unknown: 2D1A6E1003FF00000000000000000000000000000000000000000000
IE: Unknown: 331A6E1003FF00000000000000000000000000000000000000000000
IE: Unknown: 3D16060D0000000000000000000000000000000000000000
IE: Unknown: 3416060D0000000000000000000000000000000000000000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101030003A4000027A4000042435E0062322F00
IE: Unknown: DD0900037F01010000FF7F
IE: Unknown: DD800050F204104A0001101044000102103B000103104700100000000000001000000020DCE661A6061021000754502D4C494E4B10230009544C2D57523734354E10240003312E3010420003312E301054000800060050F204000110110018576972656C657373204E20526F757465722057523734354E100800020086103C000101
Cell 06 - Address: C8:3A:35:04:7C:A8
Channel:8
Frequency:2.447 GHz (Channel 8)
Quality=39/70 Signal level=-71 dBm
Encryption key:on
ESSID:"Tenda_047CA8"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=00000010cc872d24
Extra: Last beacon: 1960ms ago
IE: Unknown: 000C54656E64615F303437434138
IE: Unknown: 010882840B162430486C
IE: Unknown: 030108
IE: Unknown: 2A0100
IE: Unknown: 2F0100
IE: Unknown: 32040C121860
IE: Unknown: 2D1A7E181BFF00000000000000000000000000000000000000000000
IE: Unknown: 3D16080F0000000000000000000000000000000000000000
IE: Unknown: DD090010180200F02C0000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
Cell 07 - Address: C8:3A:35:26:69:00
Channel:8
Frequency:2.447 GHz (Channel 8)
Quality=27/70 Signal level=-83 dBm
Encryption key:on
ESSID:"meiyu520"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 18 Mb/s
24 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 9 Mb/s; 12 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=00000003a3780c91
Extra: Last beacon: 1936ms ago
IE: Unknown: 00086D65697975353230
IE: Unknown: 010882840B162430486C
IE: Unknown: 030108
IE: Unknown: 2A0104
IE: Unknown: 2F0104
IE: Unknown: 32040C121860
IE: Unknown: 2D1AFE181BFFFF000001000000000000000000000000000000000000
IE: Unknown: 3D16080F0000000000000000000000000000000000000000
IE: Unknown: DD090010180201F02C0000
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
Cell 08 - Address: 78:A1:06:64:98:5C
Channel:11
Frequency:2.462 GHz (Channel 11)
Quality=49/70 Signal level=-61 dBm
Encryption key:on
ESSID:"junniuniu"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s
Bit Rates:24 Mb/s; 36 Mb/s; 48 Mb/s; 54 Mb/s
Mode:Master
Extra:tsf=00000019b32a93a3
Extra: Last beacon: 1024ms ago
IE: Unknown: 00096A756E6E69756E6975
IE: Unknown: 010882848B960C121824
IE: Unknown: 03010B
IE: Unknown: 2A0100
IE: Unknown: 32043048606C
IE: Unknown: 2D1A6E1003FFFF000000000000000000000000000000000000000000
IE: Unknown: 3D160B070200000000000000000000000000000000000000
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: WPA Version 1
Group Cipher : CCMP
Pairwise Ciphers (1) : CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
IE: Unknown: DD05000AEB0100
IE: Unknown: DD8B0050F204104A0001101044000102103B000103104700100000000000001000000078A10664985C102100074D455243555259102300064D573330355210240003332E3010420007312E312E302E331054000800060050F204000110110018576972656C657373204E20526F75746572204D5733303552100800022288103C0001011049000600372A000120
Cell 09 - Address: CC:34:29:17:83:82
Channel:13
Frequency:2.472 GHz (Channel 13)
Quality=45/70 Signal level=-65 dBm
Encryption key:on
ESSID:"FAST_178382"
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 9 Mb/s
18 Mb/s; 36 Mb/s; 54 Mb/s
Bit Rates:6 Mb/s; 12 Mb/s; 24 Mb/s; 48 Mb/s
Mode:Master
Extra:tsf=00000017ba016f96
Extra: Last beacon: 364ms ago
IE: Unknown: 000B464153545F313738333832
IE: Unknown: 010882848B961224486C
IE: Unknown: 03010D
IE: Unknown: 2A0104
IE: Unknown: 32040C183060
IE: Unknown: 2D1AEE1117FFFF0000010000000000000000000000000C0000000000
IE: Unknown: 3D160D070600000000000000000000000000000000000000
IE: WPA Version 1
Group Cipher : TKIP
Pairwise Ciphers (2) : TKIP CCMP
Authentication Suites (1) : PSK
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : TKIP
Pairwise Ciphers (2) : TKIP CCMP
Authentication Suites (1) : PSK
IE: Unknown: DD180050F2020101000003A4000027A4000042435E0062322F00
IE: Unknown: 4A0E14000A002C01C800140005001900
IE: Unknown: DD07000C4307000000
IE: Unknown: DD8B0050F204104A0001101044000102103B000103104700102880288028801880A880CC342917838210210004464153541023000646575233313010240003342E301042000C4343333432393137383338321054000800060050F2040001101100163330304D20576972656C657373204E20526F75746572100800020086103C0001011049000600372A000120

poloshiao · #9

eth0 Link encap:以太网硬件地址 b8:88:e3:e4:0e:0a
eth1 Link encap:以太网硬件地址 20:68:9d:f2:3a:0e

如果長期不用
暫時把這兩個網卡的自動連線取消
或是從 Bios 把硬件關閉

wlan0 Link encap:以太网硬件地址 00:0d:a3:22:ba:3b
inet 地址:192.168.10.104 广播:192.168.10.255 掩码:255.255.255.0

已經成功驅動
並且連線成功

wlan0 Scan completed :
ESSID:"D-Link_DIR-600A"
ESSID:"cengwangkechi"
ESSID:"WIN-HOH7FBQHJSQ-97310"
ESSID:"qq521"
ESSID:"5522"
ESSID:"Tenda_047CA8"
ESSID:"meiyu520"
ESSID:"junniuniu"
ESSID:"FAST_178382"
ESSID:"5522"
ESSID:"DWONG"
ESSID:"qq521"
ESSID:"TP-LINK_19B7F0"
ESSID:"I'm 007"
ESSID:"Tenda_4A3020"
ESSID:"xiaojin"
ESSID:"D-Link_DIR-600A"
ESSID:"Tenda_04E078"
ESSID:"Tenda_047CA8"

哪一個 ESSID 是你的
注意有一些 ESSID 重複
重複名單裏面有沒有你的 ESSID
可能會引起一些干擾

fenzao · #10

哪一個 ESSID 是你的
注意有一些 ESSID 重複
重複名單裏面有沒有你的 ESSID
可能會引起一些干擾[/quote]

我有点眉目，https://bugzilla.redhat.com/show_bug.cgi?id=913631 根据这网址，上面有相应的补丁。我先试试。我降了下版本，用2011_0719_RT3070_RT8070_RT3370_RT5370_RT5372_RT2070_Linux_STA_V2.5.0.3_DPO 这个版本加载rt2800usb模块，稍好点，但是也是很慢。

fenzao · #11

poloshiao 写了：
哪一個 ESSID 是你的
注意有一些 ESSID 重複
重複名單裏面有沒有你的 ESSID
可能會引起一些干擾

我想问下这个补丁怎么打？里面没有rt2800lib.c rt2800usb.c 这两个文件。地址是https://bugzilla.redhat.com/show_bug.cgi?id=913631

poloshiao · #12

这个补丁怎么打

http://ubuntuforums.org/showthread.php?t=1767195

没有rt2800lib.c rt2800usb.c 这两个文件

1. http://git.kernel.org/cgit/linux/kernel ... 41ce5676f4
用 rt2800usb.c 搜尋
2. http://lxr.free-electrons.com/source/dr ... =m68knommu
3. http://rt2x00.serialmonkey.com/wiki/ind ... ext=Search
Rt2x00 GIT instructions

Ubuntu中文论坛

ralink 3072网卡问题

ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题

Re: ralink 3072网卡问题
